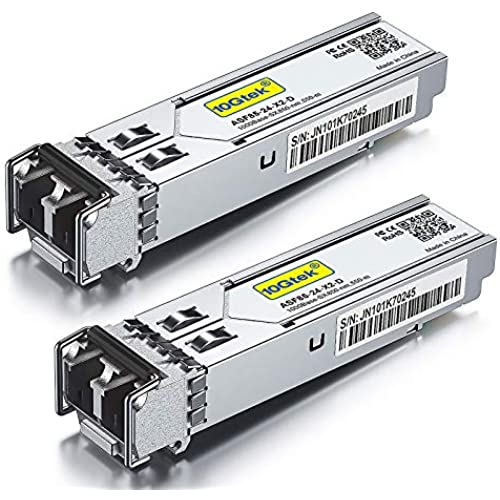

1.25G SFP 1000Base-SX, 850nm MMF, up to 550 Meters, for Cisco GLC-SX-MMD/SFP-GE-S, Meraki MA-SFP-1GB-SX, Fortinet, Ubiquiti UniFi UF-MM-1G, Mikrotik S-85DLC05D, TP-Link TL-SM311LM and More, Pack of 2

(1896 Reviews)

Price
$7.19

Number of Items
Quantity
(40000 available )

Total Price
Share
38 Ratings
35
1
1
1
0
Reviews
  • Kevin R

    > 24 hour

    Installed 4 modules in 802.3ad between an Engenius EWS1200-28T and an Engenius EWS1200D-10T. It was plug and play and works great with 10 Gigabit Aqua Fiber Optic Cable, LC/LC, Multimode, Duplex (#B01735WPSE). Photo: Engenius EWS1200D-10T with 10Gtek modules installed and connected with 10Gb LC multimode fiber.

  • Narvanetsi

    > 24 hour

    good product with wide range of compatibility and affordable pricing.

  • moutaz

    > 24 hour

    I have edgerouter4 and gs110tp, i bought two of those in the hope of connecting the router to the switch via sfp. Upon connection, nothing happened, no green light, nothing. I left them in their boxes thinking that i didnt do enough research to ensure compatability. As a last resort, i decided to contact 10gtek and ask for advice. I got a response within few hours stating some troubleshooting steps trying to pin down the problem. The first suggestion was to try another fiber cable which i didnt have and i had to buy it, once arrived, i connected it and the green lights came up on both the router and the switch, so far so good! Thanks a lot Freya from 10gtek for the quick response and the helpful suggestions. Soon i will buy two more to extend my network.

  • Jeremy E.

    > 24 hour

    I was skeptical but these worked perfect.

  • Ricardo Suarez

    > 24 hour

    producto totalmente compatible con los equipos cisco

  • Michael R Pursifull

    > 24 hour

    Eight of ten work perfectly; the other two probably will, I simply havent installed them yet. These provide statistics on power use, temperature, and dBm on Tx and Rx. Will definitely re-purchase without hesitation. I have used these in multiple Ubiquiti switches, including 8 port 150w and 2nd gen 24 port poe models

  • Roger Whitehouse

    > 24 hour

    Its compatible with UNVR, works perfectly as expected!

  • Charles Long

    > 24 hour

    All good

  • Paul

    > 24 hour

    Used this to link my Unifi switch 8 150 watt POE to my Netgear GS724Tv3 24-Port Gigabit Ethernet Smart Managed Pro Switch. Just inserted in SFP ports of both mfg switches, connected fiber optic cable, and it was online with no hassle. These are great SFP modules at a fraction of the cost of the modules recommended by each switch mfg.

  • eddie

    > 24 hour

    Weve been using these products for a while now, and each time I am pleased with the experience. No hassle, and much cheaper than the original GBICS. We will continue to use these products and would recommend them to everyone

SX LX SFP+SR 10GBase-LR 1000Base-T 10GBase-T
1000Base-SX 1000Base-LX 10GBase-SR 10GBase-LR 1000Base-T 10GBase-T
Data Rate 1.25G 1.25G 10G 10G 1.25G 10G
Wavelength 850nm 1310nm 850nm 1310nm RJ-45 RJ-45
Fiber Type MMF SMF MMF SMF CAT.5e CAT.6a/CAT.7
Distance 550 m 20 km <300 m 10 km 100 m <30 m
Optical Comp. PF/PIN FP/PIN VCSEL/PIN DFB/PIN N/A N/A
Tx Power(dBm) -8~-4 -9~-3 -1~-6 1~-3 - -
E.R(dBm) >9 >9 ≥6 ≥3.5 - -
Rx Sens.(dBm) -18~0 -22~-3 -11.1~-1 -12.6~0.5 - -
Temp(℃) 0~70 0~70 0~70 0~70 0~70 0~60

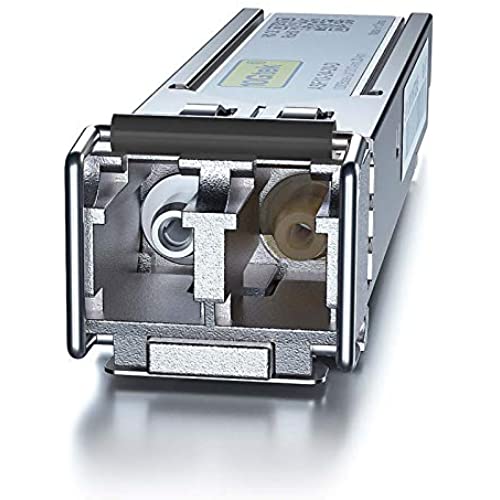

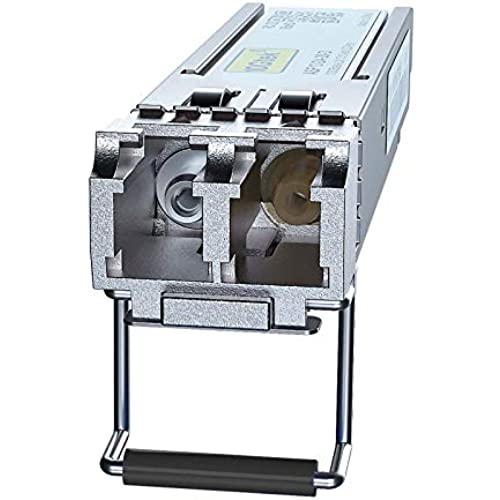

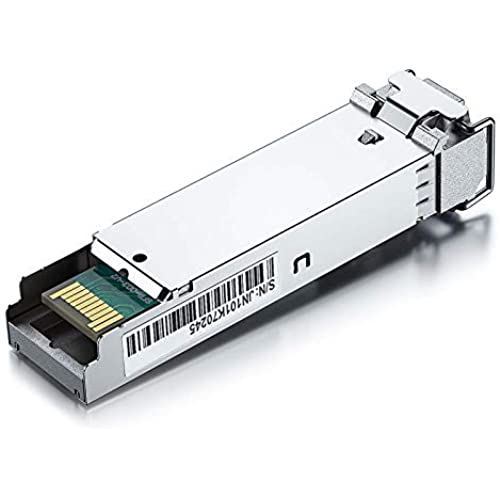

10GTek 1.25G Transceiver Module10GTek 1.25G Transceiver Module
10Gtek 1.25G Transceiver Module10Gtek 1.25G Transceiver Module
10GTek 1.25G Transceiver Module10GTek 1.25G Transceiver Module
10GTek 1.25G Transceiver Module10GTek 1.25G Transceiver Module
10Gtek module packaging10Gtek module packaging
