Anti-Static Mat ESD Safe for Electronic Includes ESD Wristband and Grounding Wire, HPFIX Silicone Soldering Repair Mat 932°F Heat Resistant for iPhone iPad iMac, Laptop, Computer, 15.9” x 12” Grey

(1733 Reviews)

Price
$20.99

Quantity
(10000 available )

Total Price
Share
10 Ratings
4
5
1
0
0
Reviews
  • Bill Reid

    > 24 hour

    This is a decent mat for occasional use. Just the right size for my needs. The smell that some complained about worried me, but on arrival yesterday there was almost no objectionable odor and today it is gone. I was also concerned that the mat would take a while to lie flat if it arrived rolled up. Well, it did arrive rolled up but lay flat on my workspace after one counter roll in the opposite direction. Also, I was able to use my old wrist strap connection with the longer cord. I agree that the one supplied is a bit too short, but could easily be extended if needed. This is not a professional ESD mat by any means, but at this price point, that is not the intent. One nice thing - I have already found this mat much easier to clean than my old one.

  • Ron

    > 24 hour

    Serves its purpose well. I would recommend

  • ejstarnes

    > 24 hour

    My wife laughs at me but our electronics are working. Works great!

  • CR

    > 24 hour

    If youve bought generic essentials from no-name third party Chinese retailers off Amazon before, you wont be in for much of a surprise. The quality is acceptable and the written instructions border on unintelligible, but youll figure it out. Truthfully, you only really need the wrist strap and a ground connection to prevent ESD: all the mat does is provide a no-slip surface. This in itself can be useful, granted, but advertising everything else as a gift is simply disingenuous. The mat has practically no conductivity, so selling it as an ESD Safe product on its own is like selling a car without the battery and calling it road safe. Thankfully they did package those gifts with the mat so if nothing else they can save their own skin. If you already have a no-slip surface, youd be better off buying the strap and a way to connect it to ground. Ideally youd get a real ESD mat with a proper grounding setup, but Im reviewing this product from the point of view of a hobbyist. I have an AS in Electronics so Ive worked with industry-quality mats and grounding setups: if thats what youre looking for here, then look elsewhere. The silicone stench thats mentioned in other reviews is indeed an issue, but not for long. I just put it in a bathtub full of soapy water for like ten minutes and the smell greatly diminished. Alternatively (at least according to the manual) you can let it sit out for a couple of days to dissipate the smell, but who says patience is a virtue?

  • Captain MoFo

    > 24 hour

    The mat wasn’t big enough to set my pc tower on fully but it was good enough as I don’t work on my own stuff often. Static band was fine

  • Nadine

    > 24 hour

    The silicon mat is large and has a spacious work area. The ground straps work great.

  • MaxLuke

    > 24 hour

    I have been needing an basic level antistatic esd mat for working on small electronics and entry lvl soldering, for some time. I especially love that this rolls up easy without creases or loss of form. also love the small and varied indent spaces for placement of small screws, parts, etc. finally love that it came with two sets of antistatic clips with grounding plug. I am hopeful it will be durable enough for my needs. I may need to invest in a larger one down the road that has more features, but for now this will help me with small repair projects. I do however wish there were different colors - like blue or white, so i could be able to easier see everything.

  • Aurelius

    > 24 hour

    I assembled another PC using the grounding straps.

  • Paxman267

    > 24 hour

    Ive soldered on this mat and placed a hot air gun on it. Placement for the screws is helpful. Havent figured out how to use anti static device but overall it worked perfectly

  • Peter Carranza

    > 24 hour

    I like the feel of this product and the thickness. It is a good value as well.

ESD Safe Anti-static Mat for Electronics Repair ESD Safe Anti-static Mat for Electronics Repair

Why you need an anti-static work mat ?

In our daily life, static electricity can be generated everywhere, especially in the dry season. I think everyone has experience of getting zapped by static electricity in lives. For example, when you take off your sweater, shake hands, or open the door, you will be inadvertently " get shock" by static electricity. This process is called static discharge. The voltage generated during electrostatic discharge can sometimes be as high as hundreds, thousands or tens of thousands of volts. Such a high electrostatic voltage has a high probability of destroying or damaging IC chips and most electronic components, so when you are repairing or disassembling or installing electronic products, an anti-static work mat is an indispensable tool mat for you. You won"t know you need it until you have one!

HPFIX Anti-static Mat Benefits:

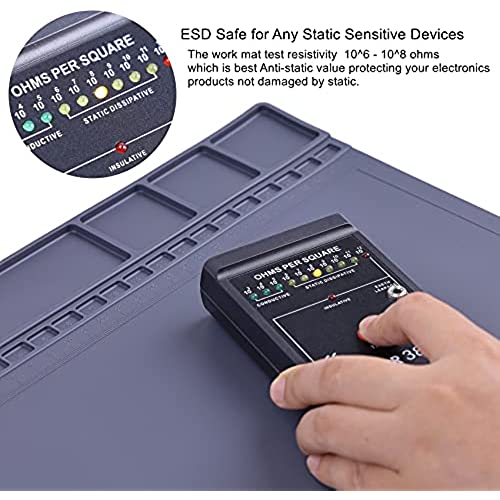

  • ESD Safe for Sensitive Electronics: Product resistivity value of the mat is 10^6 - 10^8 ohms which is best protecting sensitive electronic. When you need repair or assemble your electronics devices, with HPFIX anti-static mat, you don"t worry static damage to your electronics any more. In addition, we are also equipped with a free accessory kits to make the anti-static mat convenient and easy to connect to the ground.

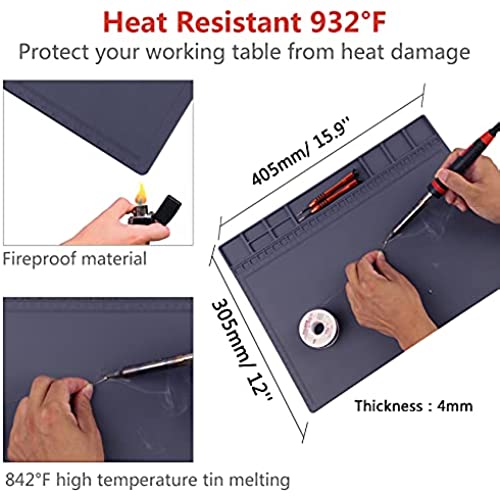

  • High Temperature Heat Resistant: The mat is high temperature resistance. It can perfectly protect your workbench platform from burning and ruining.

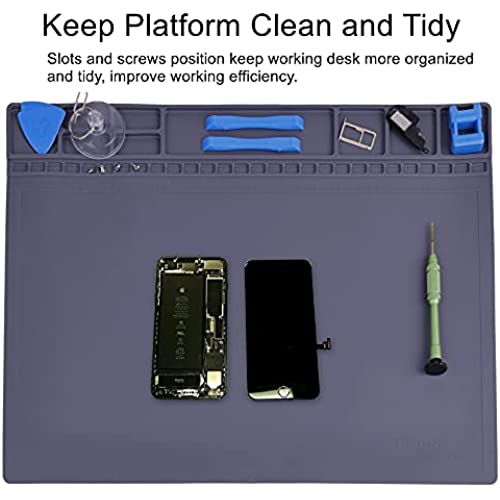

  • Keep Your Platform Clean and Tidy: The big anti-static mat create a Organized work space for you. There has 37 slots and built-in scale ruler keep your small disassembled components in good classification, easier to distinguish and get, and improve working efficiency.
  • Stop Losing Small Pieces: With convenient slots and neat dividers,they keep your electronic components in place while you work, so your pieces stop slipping and you don’t lose small pieces.
  • ESD Accessories: We have equipped you with the free corresponding ESD earth connection accessories, you can very conveniently and easily connect the product to the ground. At the same time, we also have product manuals for your reference.
Anti static mat with ESD Accessories KitAnti static mat with ESD Accessories Kit

PRODUCT DETAILS

SPECIFICATIONS:

  • Resistivity: 10^6 - 10^8 ohms
  • High-temperature resistance coefficient : 932°F, (500℃)
  • Dimension Size: 15.9"" (L) x 12"" (W) x 0.15"" (H)
  • Thickness: 0.15 inch
  • Weight:0.99lb
  • Color: Grey
  • Material: Food grade anti static silicone

Warm tips: Because the product is sealed package. When you unpack it, there may be a very little silicone smell, but as long as it is left for 1-2 days, the silicone smell will disappear.

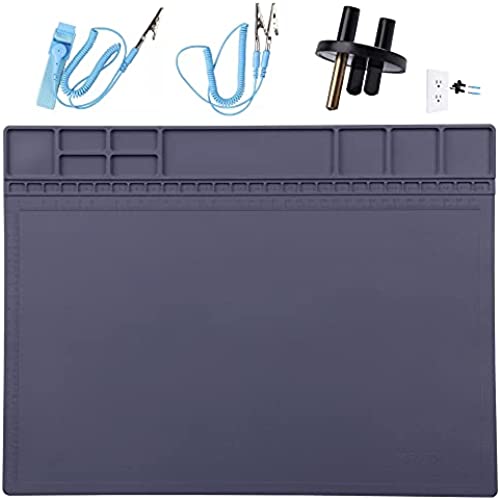

Package Included:

  • 1 x Anti-static Work Mat
  • 1 x Grounding Plug
  • 1 x ESD Wriststrap
  • 1 x Grounding Cord
  • 1 x Product Instruction

How to connect to anti-static mat to the ground ? Please see showing pictures.

earth connectin accessories earth connectin accessories

Ground Plug insert into grounded socket Ground Plug insert into grounded socket

gounding wire and esd wristband without Alligator clip  insert into grounded pluggounding wire and esd wristband without Alligator clip  insert into grounded plug

anti static mat connect groundanti static mat connect ground

  • Grounding plug: It is unique designed by HPFIX. It"s ideal for earth connections to any static dissipate or conductive objects.
  • ESD Wristband: Adjustable and High-quality ESD Wristband for More People.
  • Grounding Cord: High quality and durable ground cord plays a good role of grounding connection for anti-static mat.

  • Grounding Plug insert into grounded socket.

  • Remove the alligator clip of grounding cord and the alligator clip of anti-static wrist strap, and then insert into the grounding plug.

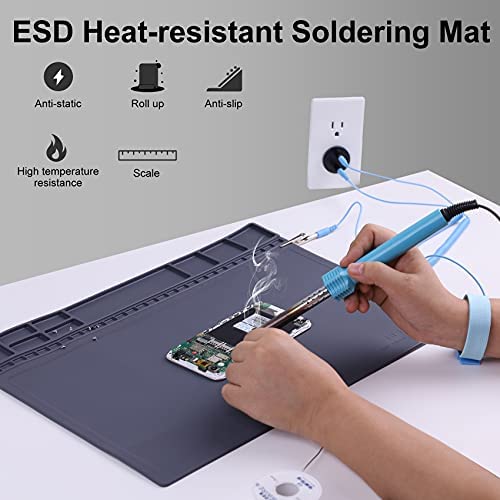

  • Put the anti-static mat on the workbench and one end of crocodile clip of grounding cord clamps any part of the anti-static mat. In this way, the mat is connected to the ground.
  • When you need repair or assembling product , please also wear the ESD wristband.

Application:

ApplicationApplication
