DORHEA ESP8266 Code Burner Firmware Downloader Flash Download Tool Test Board + 5PCS ESP-12F ESP12F WiFi Module Compatible with Wireless Transmission Serial Transceiver Receiver
-
scodyw
> 24 hourI had Arduino IDE open when it arrived, so I flashed the code I had open to each of the ESP-12Fs to test them. Then I tested the ESP-01 the code was for in the flasher, and it worked too. It is a simple web page. The flasher did its job and each ESP-12 connected to the WiFi, then presented the web page.
-
Nathan Grove
> 24 hourSaves a ton of time trying to flash these chips. If you dont have a burner, you should get one.
-
Liping
> 24 hourThis product is very well designed and manufactured. It is reliable and very convenient to use. Well done!
-
4d
> 24 hourThis is very handy for programming ESP8266 devices that require additional components for stability while flashing. Ie ESP-01 and ESP-12x devices.
-
Joyce A. Miller
> 24 hourSatisfied
-
Ric S
> 24 hourThe board works as advertized and is a huge time saver. Four of the five ESP-12F chips flashed perfectly with Tasmota. One of the ESP-12F chips would not respond and I was unable to flash it.

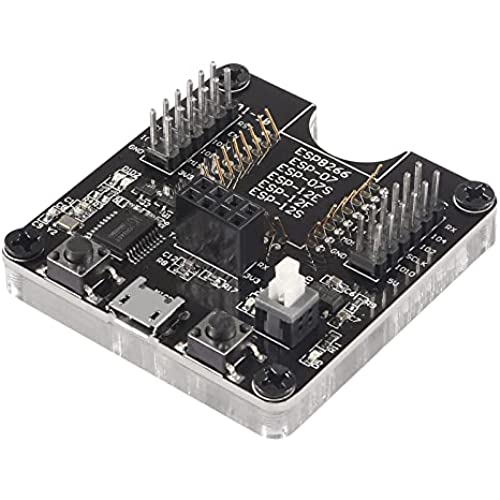

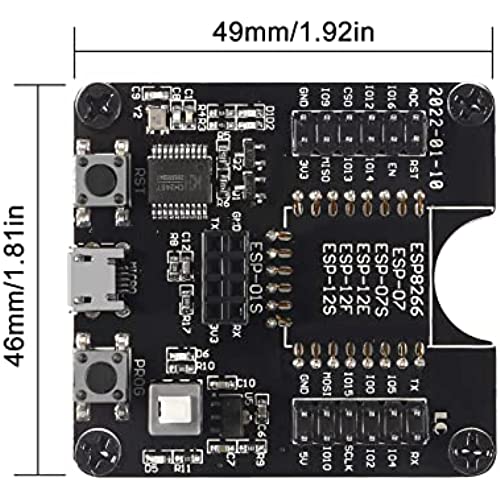

- This ESP8266 code burner firmware downloader is suitable for firmware burning test of modules such as ESP-12S/12F/12E/07S/07.
- All IO ports have been exported and can be used as a minimum system development board or a small batch burning fixture.

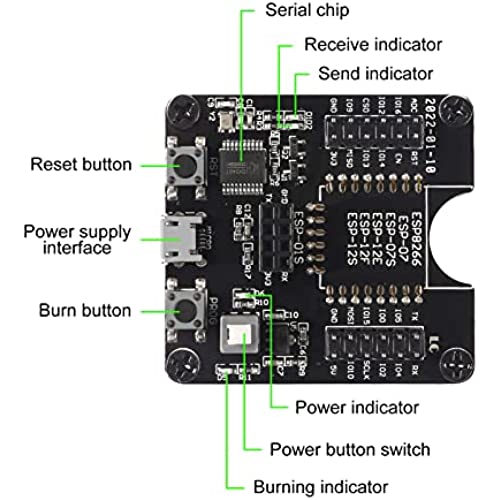

- The board supports firmware one-click download function and adds programming.
- Mode indicator (blue light) and serial communication indicator (green light).

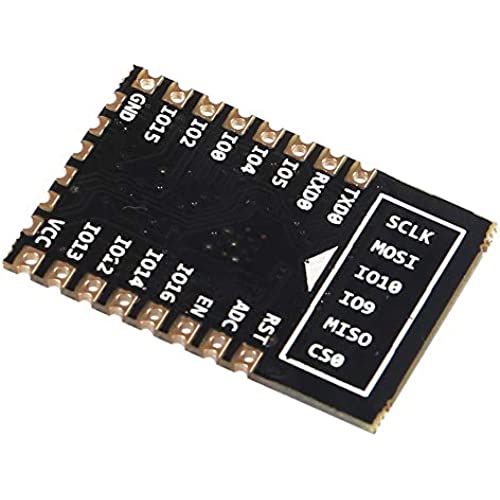

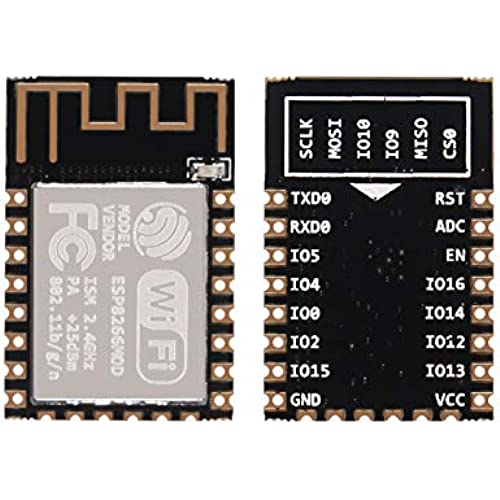

- Type: ESP-12F
- Wireless standards: 802.11 b / g / n
- Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M)
- Data interface: UART / HSPI / I2C / I2S / IR Remote Control GPIO / PWM
- Operating voltage: 3.0 ~ 3.6V (recommendation 3.3V)
- Working Current: Average: 80mA
- Operating temperature: -40 ° C~ 125° C
- Storage temperature: Nomal temperature
Package Included:
- 1 X ESP8266 code burner firmware downloader
- 5 X ESP-12F module
Notice:
- The module supply voltage is 3.3V DC and the current is 500mA or more.
- Wi-Fi module IO maximum output current is 12mA.
- Wi-Fi module NRST pin is active low; EN enable pin is active high.
The Wi-Fi module enters the upgrade mode:
- GPIO0 is at a low level, then the module is reset and powered on;
- the Wi-Fi module enters the normal working mode: GPIO0 is at a high level, and the module is reset and powered.
- The RXD of the Wi-Fi module is connected to the TXD of the external MCU, and the TXD of the Wi-Fi module is connected to the RXD of the external MCU.
