Imachinist S933414 M42 93 X 3/4 X 10/14tpi Bi-Metal Metal Cutting Band Saw Blades

(0 Reviews)

Price
$25.99

Quantity
(10000 available )

Total Price
Share
11 Ratings
8
3
0
0
0
Reviews
  • Karen T.

    > 24 hour

    Works very well for our metal cutting needs.

  • Dustin W.

    > 24 hour

    Blades seems to be of good quality, havent used it enough yet to comment on longevity, but it seems like a good value so far.

  • lester

    > 24 hour

    I use to cut aluminum and plastics, good quality saw.

  • HD

    > 24 hour

    It did what its supposed to do I bought these before they work well and I get them shipped quick

  • Nate Lenn

    > 24 hour

    This blade is great. It cuts through metal quickly and was much better than the original blade that was on my saw. I will be buying more!

  • Mark Huth

    > 24 hour

    I bought this to cut metal on my older 14 Jet bandsaw that I have added the 3-speed pulley set to. Blade cuts aluminum fine, and would cut steel with some cutting lubrication. Unfortunately, there is a wobble in the blade of about .05, which makes operation very uneven. Poor quality control is the likely issue, as others have reported a similar problem. I have upgraded the rating to 4 stars as I have received excellent service from the vendor. He sent a replacement 6/10 blade after I told him I was cutting aluminum. The second blade was much straighter and cut the aluminum quickly and the resulting cut was easy to de-bur. Finally, many common 14-in band saws need a 93-1/2 inch blade rather than a 93 inch blade. That was my mistake (and Amazons wretched search engine). Fortunately, I have added a quick change lever to my saw and the adjustment range was adequate to allow use of the 93 inch blade.

  • Kallie

    > 24 hour

    The best ever used! Long lasting

  • usahd32

    > 24 hour

    Been running this blade for about a month now in a small fab shop cutting mostly heavy wall DOM and 4140. It is holding up well to daily use. Only bad I have to say about it is that it does not run as smooth as a more expensive name brand blade. Having said that I believe it is a good blade and will order again when needed. I will update again if need be but I figure I have already gotten my money out of this one. 9-17-20 update. Blade finally broke. I ordered two more:) 12-6-22 update. This blade has become my go to. I changed 4 stars to 5 stars. For the money it cant be beat

  • Paul S.

    > 24 hour

    03/14/22 Addendum: The seller contacted me after seeing my less than flattering reviews. We went back and fourth and they worked with me to try to find a blade better suited for the work I am doing. The Imachinist blade P/N X0023G3F2P is 24 TPI. They sent me one to try. I have cut a few items, and I am happy to say it seems to be doing the trick! It works fine. But if you cut anything hard, it would need to be on a machine with coolant. I have bought a number of the I Machinist brand. I always buy the bi-metal blades. I finally figured out that they say for soft metal such as aluminum and brass in the fine print. I have geared my saw WAAAAAAAAAAAY down to a crawl, and use lots of lube and it works fine for my home use. I still avoid cutting any steel if at all possible!

  • Caleb Cormier

    > 24 hour

    Delivery was as promised. Well packaged- simple, no hassle, protected but not overdone with unnecessary and excess materials. Was impressed by the tooth guard- a plastic channel that fit over the tooth side of the blade. First Ive seen this on a purchased blade from anywhere. Blade installed on the bandsaw with no issues. Cut about a dozen pieces of angle iron and steel box tubing using continuous coolant on the blade. It cut true and silent with no wave fluctuation (teeth raising off piece due to blade warpage). So far I have to say great value for the money. Could not rate longevity because dont have that much time on it, but barring any unexpected issues will definitely buy again when a replacement is needed.

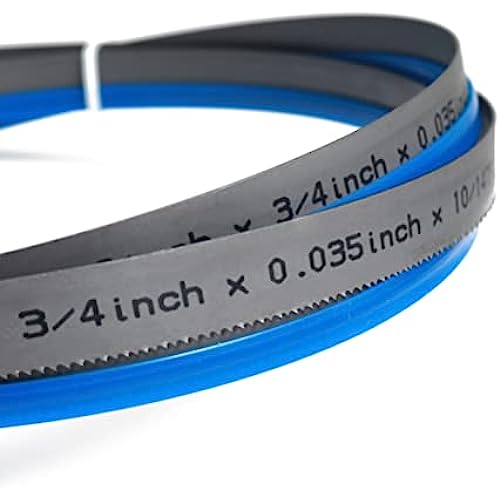

Imachinist New Bandsaw Blade 93" X 3/4" X 0.035" X 10/14tpi

Blade Length: 93" or 7"9"

Blade Width: 3/4" or 19 mm

Blade Thickness: 0.035" or 0.9 mm

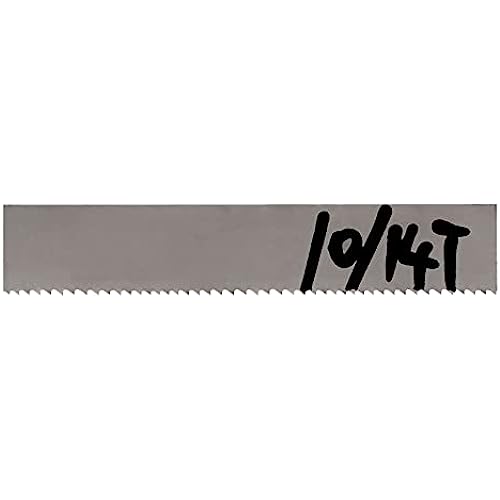

Blade Teeth: 10/14tpi (variable pitch)

Teeth Form: null raker

Include: 1 piece of 93" x 3/4" x 0.035" x 10/14tpi band saw blade

Suitable: for ferrous thick tubing, profile, sheet, plate etc

93 3 4 in 93 inch 0.75 .75 5inch 5inches inches half steel replacement parts bimetal cut hss 2362 93 3 4 in 93 inch 0.75 .75 5inch 5inches inches half steel replacement parts bimetal cut hss 2362 93 3 4 in 93 inch 0.75 .75 5inch 5inches inches half steel replacement parts bimetal cut hss 2362 93 3 4 in 93 inch 0.75 .75 5inch 5inches inches half steel replacement parts bimetal cut hss 2362 93 3 4 in 93 inch 0.75 .75 5inch 5inches inches half steel replacement parts bimetal cut hss 2362 93 3 4 in 93 inch 0.75 .75 5inch 5inches inches half steel replacement parts bimetal cut hss 2362
Click here for 93", 3/4TPI Click here for 93", 4/6TPI Click here for 93", 5/8TPI Click here for 93", 6/10TPI Click here for 93", 8/12TPI Click here for 93", 14TPI
Blade Length 93" 93" 93" 93" 93" 93"
Blade Width 3/4" 3/4" 3/4" 3/4" 3/4" 3/4"
Blade Thickness 0.035" 0.035" 0.035" 0.035" 0.035" 0.035"
Blade Teeth 3/4TPI 4/6TPI 5/8TPI 6/10TPI 8/12TPI 14TPI
Pitch variable pitch variable pitch variable pitch variable pitch variable pitch constant pitch
Suitable for ferrous solid rod with big diameter ferrous solid rod with big diameter ferrous solid rod with big diameter aluminum, copper, brass etc and other non-ferrous metal ferrous thick tubing, profile, sheet, plate etc general purpose
SKU S933434 S933446 S933458 S9334610 S9334812 S9334014
64 1 2 in 5 feet 4 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 1638 164064 1 2 in 5 feet 4 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 1638 1640

Cold Rolling

We use imported cold rolling machine to cold roll the band saw blade strip

64 1 2 in 5 feet 4 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 1638 164064 1 2 in 5 feet 4 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 1638 1640

Cold Rolling

64 1 2 in 5 feet 4 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 1638 164064 1 2 in 5 feet 4 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 1638 1640

Milling

64 1 2 in 5 feet 4 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 1638 164064 1 2 in 5 feet 4 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 1638 1640

Heat Treatment

64 1 2 in 5 feet 4 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 1638 164064 1 2 in 5 feet 4 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 1638 1640

Welding

Blade Teeth Selection Advice and Welding Joint Comparison

64 1 2 in 5 feet 4 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 1638 164064 1 2 in 5 feet 4 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 1638 1640

How to Improve Life

  • Blade installation is the first step, make sure teeth is shown outside the guide, and blade strip is clamped tightly inside the guide.
  • Teeth direction should be the same with the direction of wheel rotation, twist the blade from inside to outside if teeth direction is opposite.
  • Running-in is required when blade cuts metal for the first time. It"s important for blade life. During running-in, cutting speed should be 1/3 of normal speed, feed should be 1/4 of normal feed. Usually, after the blade cuts the first several pieces, like 5-10 pieces, adjust cutting speed and feed gradually to normal speed according relative parameters and your metal.
  • Blade tension will be different for differnt wide blades, as time goes on, blade tension will be reduced by the bandsaw and blade stretch, make sure the blade is correct tension, our recommended blade tension is 300N/mm2.
  • Coolant will be useful to cool and lubricate blade and teeth during cutting, better coolant could avoid overheat on the teeth of the blade, and reduce friction between the blade and the metal you cut.
  • Teeth selection is also important, here are our experience:

  1. big variable teeths (like 3/4TPI, 4/6TPI, 5/8TPI) are for cutting ferrous solid rod with big diameter;
  2. big constant teeth (like 6TPI) is for cutting ferrous solid rod with small diameter;
  3. big variable teeth (like 6/10TPI) is for cutting aluminum, copper, brass etc and other non-ferrous metal;
  4. middle variable teeths (like 8/12TPI, 10/14TPI) are for ferrous thick tubing, profile, sheet, plate etc;
  5. small constant teeth (14TPI) is for general purpose;
  6. small variable teeths (like 12/16TPI, 14/18TPI) is for ferrous thin tubing, sheet, plate, profile etc;
  7. small constant teeth (24TPI) is for ferrous thin tubing, plate, sheet etc, don"t cut non-ferrous metal, like aluminum etc.

64 1 2 in 5 feet 4 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 1638 164064 1 2 in 5 feet 4 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 1638 1640

64 1 2 in 5 feet 4 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 1638 164064 1 2 in 5 feet 4 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 1638 1640

bandsaw blade packagebandsaw blade package

Welding Joint

We weld blades with high performance welding machine to make sure welding joint looks perfect.

Teeth Direction

Default teeth direction is rightward, if you want leftward direction, please twist the blade from inside to outside.

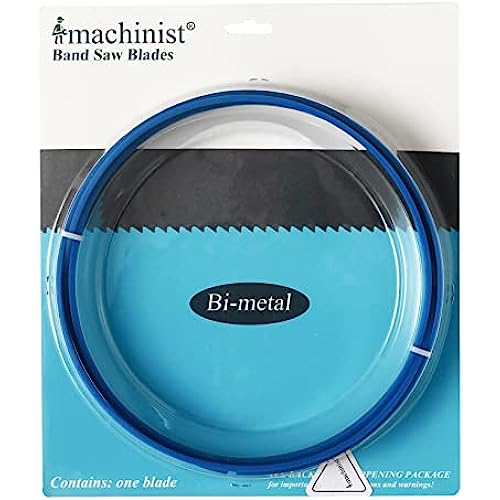

Original Package

Brand new with original package for this blade with tips behind blade pacakge to help customers.

52 3 4 1 2 in 52.75 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 134052 3 4 1 2 in 52.75 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 1340

52 1 2 in 52.5 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 133452 1 2 in 52.5 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 1334

52 3 4 1 2 in 52.75 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 134052 3 4 1 2 in 52.75 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 1340

71 3 4 1 2 in 71.75 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 182271 3 4 1 2 in 71.75 inch 5inch 5inches inches half steel replacement parts bimetal cut hss 1822

Metalworking Type

Bi-metal blade is designed for metalworking, ideal for metalworking craftman, blacksmith, mechanic etc.

Compatibility

Accurate length with high performance, compatible with most bandsaws with more choices on teeth pitch.

Ideal DIY Tools

Bi-metal type, M42 grade, 8% cobalt with 2% tungsten, much more fatigue resistant and durable on metal.

Blade Life

Spring steel backer strengthens blade life, hardened edges to cut metal straightly with ease, blade works with high performance.
