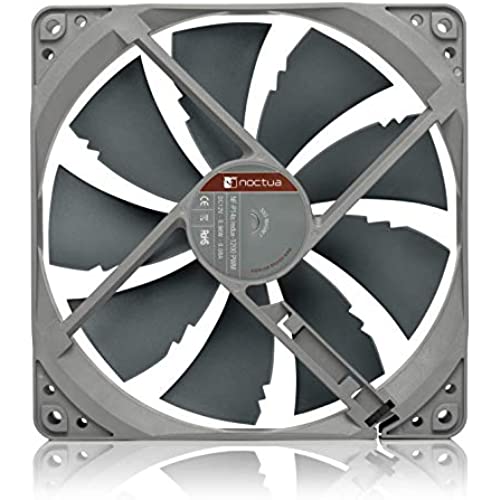

Noctua NF-P14s redux-1200 PWM, Quiet Fan, 4-Pin, 1200 RPM (140mm, Grey)
-
Kindle Customer
> 3 dayReally quiet fans !
-
Duane
> 3 dayVery quiet fan limited to 1200RPM so it will stay that way.
-
ileto
> 3 dayGreat fans that are hard to hear in a closed case when below 50% rpm. Audible but not unpleasant above 50%. My computer sits three feet to my left on top of a desk. Be aware that unless your power supply is a quiet one, or one that turns off its fan under low load, its fan will likely be louder than these fans. Also any active hard drive is much louder than case fans.
-
Todd
> 3 dayworks perfect
-
Kevin
> 3 dayWorks as described, PWM controls are great for making your own fan curve. I use this as an intake on my front panel. Silent effective operation at a solid price for Noctua reliability and quality.
-
buyer
> 3 dayTheyre ok, theyre really not much better if any than cheapo fans, I feel like noctua is putting out cheaper product and selling their name.
-
Ricardo B.
> 3 dayNoctua products > ALL
-
Roman
> 3 dayThis are some of the quietest fans I’ve ever used. Be advised that the redux line doesn’t come with rubber corners though. This isn’t an issue however as the fan is extremely quite and balanced. The grey color is a little hard to blend in though.
-
Charles S
> 3 dayI purchased 2 of these fans. Their housings are thick enough where my son could not fit the fan anywhere except the front of his case with a B550 Mortar board. After a few months, 1 fan died. I contacted Noctua support and waiting resolution.
-
Deanna Hills
> 3 dayThese fans are great.
Now available in a square frame version called NF-P14s (s for square frame) that lends itself to use in case and radiator cooling, the classic NF-P14 is a long-standing favourite among enthusiast users around the world and helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-P14 premium fan. Its industry grade SSO-Bearing bearing and over 150.000 hours MTBF rating make the NF-P14 redux a proven premium choice that provides trusted Noctua quality. The 1200rpm PWM version features Noctua’s proprietary NE-FD1 for automatic speed control, which allows to strike a perfect balance between high cooling capacity and low noise operation in each given situation.
Square 140mm frame
The square 140mm frame of the NF-P14s features standard 140mm mounting holes (124.5mm spacing), which makes it a premium grade replacement for common 140mm case fans and perfect for use on 140mm water cooling radiators, where its square shape will ensure full coverage and best pressure performance.
|
|
|
|
|
|---|---|---|---|
Pressure-optimised Nine-Blade DesignSpecifically developed for high-impedance applications such as CPU coolers, water-cooling radiators or cases with tight fan grills, the NF-P14"s nine-blade impeller provides outstanding pressure and airflow performance. |
SSO-BearingCombining the proven concept of hydrodynamic bearing with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua"s time-tested technology has become synonymous with supremely quiet operation and exceptional long-term stability. |
Vortex-Control NotchesNoctua"s signature Vortex-Control Notches split up trailing edge vortices and thus spread the fan"s noise emission over a wider range of frequencies. This measure makes the fan sound more pleasant to the human ear. |

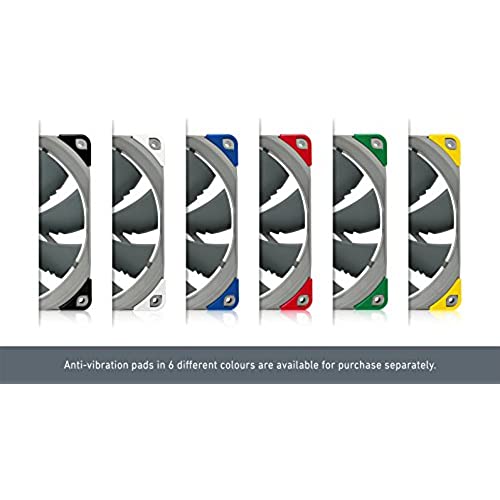

Colour-customisable with NA-SAVP1 anti-vibration padsThe fan’s frame can be outfitted with Noctua’s chromax line NA-SAVP1 anti-vibration pads. Available in black, red, blue, white, green and yellow, these pads not only damp minute vibrations but also allow the fan to be colour-customised in order to coordinate it with popular build colour schemes! |

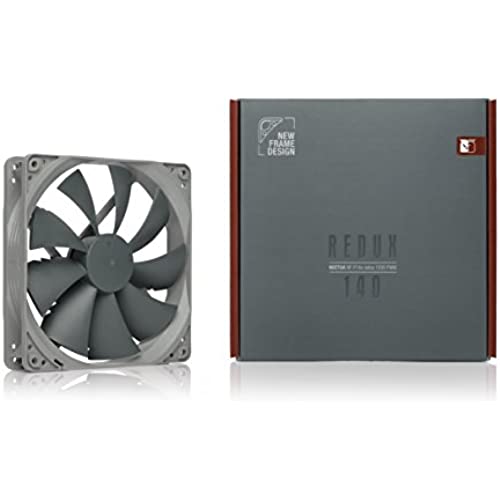

Streamlined Redux Edition
The redux product line reissues some of Noctua"s most popular, award-winning models by presenting them in streamlined, accessibly priced packages. All redux edition products are industry proven, time-tested models that helped to found Noctua"s reputation as a first-tier supplier of premium grade low noise cooling equipment.
|
|
|
|
|
|
|---|---|---|---|---|---|
| NF-P14s redux 900 | NF-P14s redux 1200 | NF-P14s redux-1200 PWM | NF-P14s redux 1500 PWM | NF-P14r redux-1500 PWM | |
| Connector | 3-pin | 3-pin | 4-pin PWM | 4-pin PWM | 4-pin PWM |
| Voltage | 12V | 12V | 12V | 12V | 12V |
| RPM | 900 | 1200 | Max: 1200 / Min: 350 | Max: 1500 / Min: 450 | Max: 1500 / Min: 450 |
| Acoustical Noise | 13,2 dB(A) | 19,6 dB(A) | 19,6 dB(A) | 25,8 dB(A) | 25,8 dB(A) |
| Static pressure | 0,77 mm H₂O | 1,29 mm H₂O | 1,29 mm H₂O | 1,91 mm H₂O | 1,91 mm H₂O |
| Airflow | 83,7 m³/h | 110,3 m³/h | 110,3 m³/h | 133,7 m³/h | 133,7 m³/h |
| Size | 140x140x25 mm | 140x140x25 mm | 140x140x25 mm | 140x140x25 mm | 140x140x25 mm |
| Colour | Redux Grey | Redux Grey | Redux Grey | Redux Grey | Redux Grey |
