Seco-Larm SK-1323-SDQ Sealed Housing Weatherproof Stand-Alone Digital Access Keypad, Up to 1010 Users, Proximity Reader, Backlit Keys for Nighttime Use, Rugged Aluminum Construction

(600 Reviews)

Price
$55.77

Quantity
(10000 available )

Total Price
Share
7 Ratings
6
1
0
0
0
Reviews
  • Bevy

    > 24 hour

    This keypad is metal and not flimsy. We live in the country so it is very dark out here and the blue lighting really stands out. Installation was fairly easy. It works like a charm and is an attractive addition to our entrance. Definitely recommend it.

  • Cubic59

    > 24 hour

    We used the toggle function on this keypad to hold a gate open indefinitely as needed for a customer that kept losing their keys to a keyswitch for the same function. They needed to be able to hold the gate open for moving multiple large trucks/trailers through the gate opening. This solved the problem.

  • H L.

    > 24 hour

    Works good so far except the noise generated from the key pad.

  • Andrew Agopian

    > 24 hour

    Overall a great product. One thing to note, when the epoxy coating was setting on the rear of the unit, it protruded a little on a solder joint so I had to file it down and I used some automotive RTV sealant. I was concerned about a short on the metal I was installing it on because it was a solder joint, but its working, so no issue. I think that this unit I got may have slipped through QA/QC because otherwise it would have had about an eighth of an inch gap and not flush against the mounting plate. I like the led backlighting on the keys and it has a good tone for the key punch so you know you are entering the code. Much better than the telephone style keys I had before from another mfg.

  • Ota Javurek

    > 24 hour

    High quality product

  • tigeraki

    > 24 hour

    I install this stand alone keypads several project and never fails for years!!

  • mils

    > 24 hour

    Fantastic, had one fail early but otherwise three units have worked for two years now without issue.

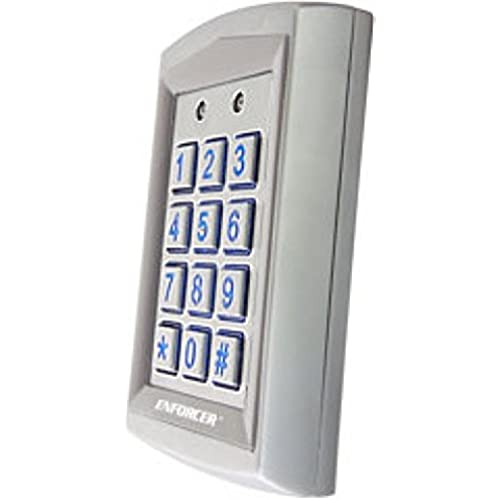

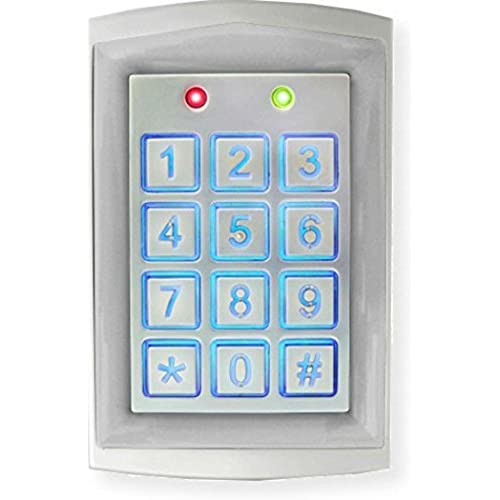

Seco-Larm SK-1323-SDQ Sealed Housing Weatherproof Stand-Alone Digital Access Keypad, Up to 1010 Users, Proximity Reader, Backlit Keys for Nighttime Use, Rugged Aluminum Construction

The SK-1323-SDQ from Seco-Larm is an indoor and outdoor stand-alone keypad designed to control access of a single entry point for facilities with up to 1010 users. Each user is assigned a personal identification number, which releases an electric door lock or triggers a gate operation. All features are programmed directly from the keypad.There is no need for an external programmer. Each relay has a programmable output time from 1 to 99 seconds or toggle.

Key Features
  • Weatherproof Stand-Alone Digital Access Keypad, 12 to 24 VAC/VDC operation
  • 1010 Users (Output number 1: 1000 users, Output number 2: 10 users)
  • 2 Form C relays, each rated 1 Amp at 30 Volts DC
  • Each relay has programmable output time from 1 to 99 seconds or toggle
  • Output number 2 can be programmed for use with a doorbell
  • 2 Egress inputs and 1 door sensor input
  • Backlit keys for easy nighttime use
  • Two multi-colored status LEDs
  • Able to mount to a single-gang back box
  • All features are programmed directly from the keypad
  • EEPROM memory protects programmed information in case of power loss
  • Optical tamper for added security
  • Circuitry is potted with epoxy for outdoor use
  • IP65 Weatherproof rating, rugged aluminum construction
Specifications
  • Current Draw in StandbyMode: 64mA at 12 Volts DC
  • Current Draw while Active: 92 to 120mA at 12 Volts DC
  • Relay Outputs (2): 1A at 30 Volts DC, Form C, NO/COM/NC
  • Egress Inputs: 2, N.O. Ground
  • Door Sensor Input: N.C. Ground
  • Tamper Sensor: Optical
  • Keypad LED Life: 60000 hours (over 6.8 years)
