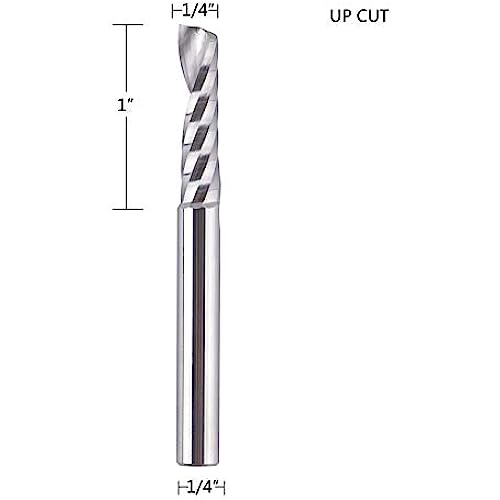

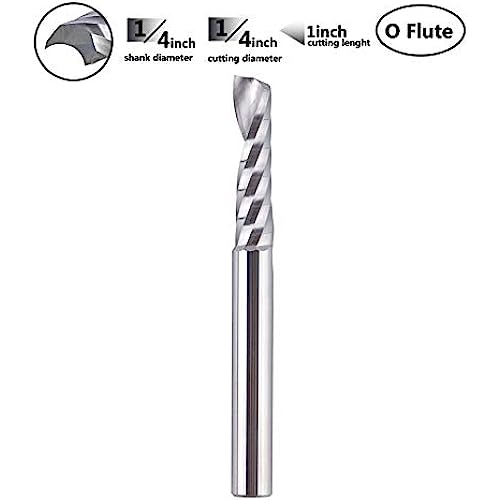

SpeTool Single Flute (O Flute) Spiral End Mill Aluminum Cutter Carbide Router 1 inch Cutting Length with 1/4Inch Shank for Aluminum Acrylic PVC MDF Plastic

(0 Reviews)

Price
$17.99

Number of Items
Quantity
(20000 available )

Total Price
Share
13 Ratings
6
5
0
0
2
Reviews
  • Mike M

    > 3 day

    Only 1 cut so far but almost no cleanup after first cut

  • K. Williams

    > 3 day

    I used this to cut slots in an aluminum extrusion. It worked much better than Id expected.

  • Alexander

    > 3 day

    Works with aluminum good

o flute end millo flute end mill

DETAIL

acrylic cutacrylic cut

SPECIFICATION

Material Use
  • Aluminum/Copper
  • Plastic/Acrylic/Nylon
  • Softwood/Hardwood
  • MDF/HDF
Recommend

Feed Rate (IPM) = RPM x # of cutting edges x Chip Load

Chip Load = per cutting edge.

IPS = Inches Per Second.

IPM = Inches Per Minute.

RPM = Revolutions Per Minute.

# of cutting edges = # of flutes.*

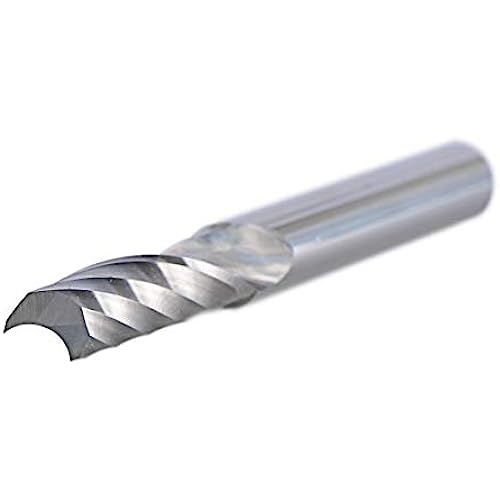

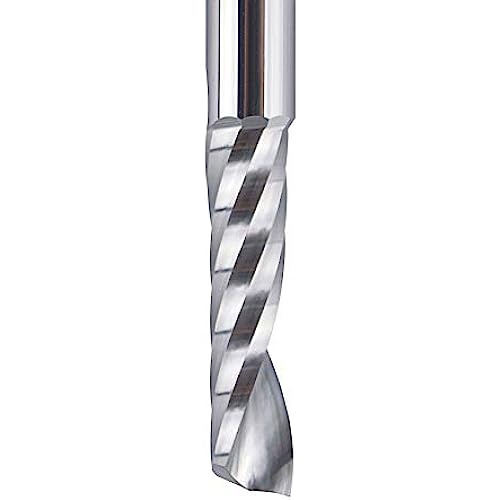

THE O FLUTE ROUTER BIT

Why choose O Flute

Compared to other flute styles, the cuts are cleaner, plunges are deeper and chips are easily directed up or down, depending on the type of spiral you choose. If you work primarily with plastic or aluminum, you’ll be happy to learn that heat is dispersed more easily with the O flute bit and it stops weld back

When choose O flute

If your material has a low melting point, a Single Flute Plastic Cutting End Mill is a good option. This tool has a larger flute valley than its two flute counterpart which allows for bigger chips. With a larger chip, more heat can be transferred away from the material without it melting

1/8S O flute end mill 18 O flute end mill 14 O flute end mill 14S O flute end mill 14L O flute end mill O FLUTE END MILL
SP1FS-D1/8 SP1F-D1/8 SP1F-D1/4 SP1FS-D1/4 SP1FL-D1/4 SP1FLS-D1/4
Cutting Dia 1/8" 1/8" 1/4" 1/4" 1/4" 1/4"
Shank Dia 1/4" 1/4" 1/4" 1/4" 1/4" 1/4"
Flute Length 1/2" 3/4" 1" 1/2" 1-1/2" 1"
Toatal Length 2" 2-1/2" 2-1/2" 2" 3" 3"
