STEPPERONLINE 5PCS Nema 17 Stepper Motor 1.5A 12V 45Ncm (63.74oz.in) 4-Lead 39mm Body W/ 1m Cable and Connector for DIY CNC/ 3D Printer/Extruder
-
Ed Sudbury Sr.
> 24 hourGreat motor
-
vaughn scherf
> 24 hourConnected to my ender 5 and it would just rotate back and forth. Replaced with a different motor and it works fine. 0/10
-
EEP

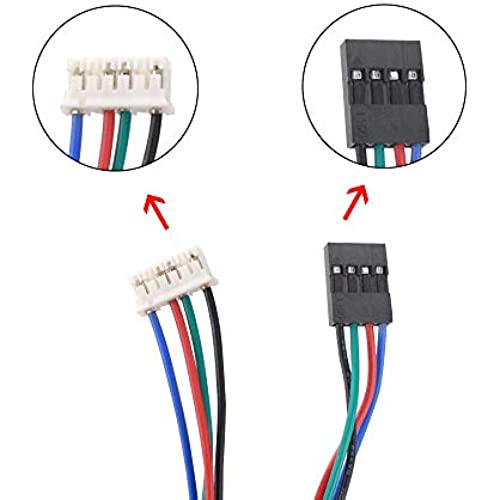

> 24 hourThe web page indicated that these motors had removable wires but they were hard wired to the motor and I had to add connectors in ordered to have them work on my printer.
-
Chris
> 24 hourI love these stepper motors. Had to do a complete rebuild on a second hand printer I got. Super quiet. Cannot even hear this printer move. Easy install works with every axis and extruder.
-
Customer
> 24 hourEverything works well as expected. I mean, that what you expect out of a product, right?
-
Viper
> 24 hourI bought these motors not for their ability to move things, but to make songs. They worked great. I made several songs, and all 5 of them carry the same rotational frequency used to make music. While I cant vouch for their torque, I did drop one off a table and it suffered no ill effects.
-
Charles M Jorgenson
> 24 hourGreat stepper motors! Powerful and quiet, huge upgrade for a 3D Printer.
-
Juan Sterling G. Santana
> 24 hourLlego bien empadado limpio y funcionó al conectarlo.Si me falta otro lo compraría otra vez con este proveedor.
-
Prof. Dale Schmeler MD
> 24 hourIm using this as a drop-in replacement for the extruder drive motor on an Anycubic Mega-S 3D printer. No software changes needed. My only complaint is that the flat part of the shaft isnt very long; I had to mount my drive gear upside down so the grub screw could engage the flat part.
-
Gdctulsa
> 24 hourReplaced my stepper motor for the bed on my anycubic mega pro with this motor but had to buy a 20 tooth gear since It didn’t come with one.

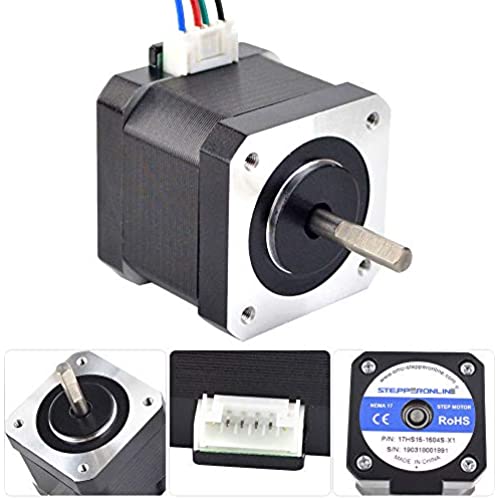

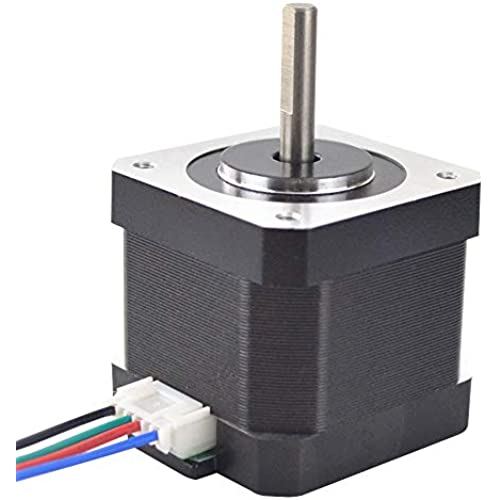

Nema 17 Stepper Motor 1.5A 45Ncm
- Reliable and Stable Performance
STEPPERONLINE strictly guarantees the quality of stepper motors and minimizes the rate of defective ones, which ensure that customers can get the most reliable and stable stepper motors.
- Low Noise
1.Use excellent materials; 2. Reasonable stepper motor design structure 3. High Precision motor assembly, which makes STEPPERONLINE" stepper motors stand out by providing quieter and smoother operation
- Safely Packaging
STEPPERONLINE specially designed Individual package to ensure your packages withstand the long trip and arrive safely and intactly. Besides, the package is made from recyclable materials, providing you with professional safety delivery.

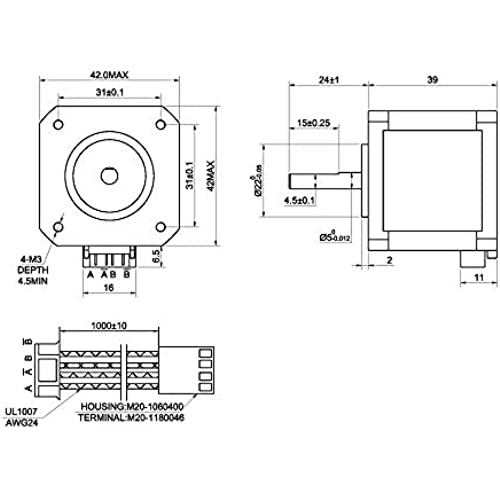

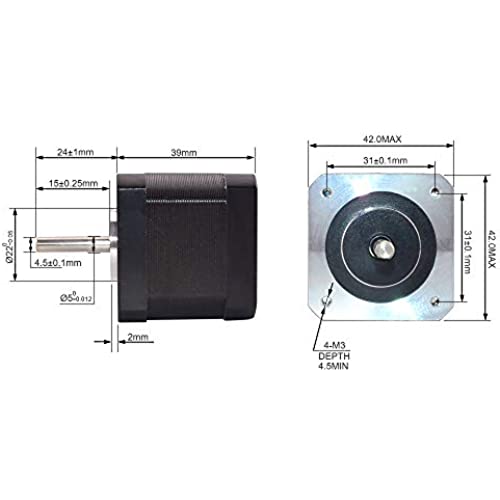

Motor Dimension
Warning
Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor.
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| 17HS08-1004S | 17HS15-1504S | 17HS13-0404S1 | 17HM19-2004S | 17HS19-2004S1 | 17HS24-2104S | |
| Rated Current/phase | 1.0A | 1.5A | 0.4A | 2.0A | 2.0A | 2.1A |
| Holding Torque | 18.4oz.in | 59.49oz.in | 36.8oz.in | 65.1oz.in | 84oz.in | 92oz.in |
| Dimension | 1.65" x 1.65" x 0.79" | 1.65" x 1.65" x 1.54" | 1.65" x 1.65" x 1.34" | 1.65" x 1.65" x 1.89" | 1.65" x 1.65" x 1.89“ | 1.65" x 1.65" x 2.36" |
