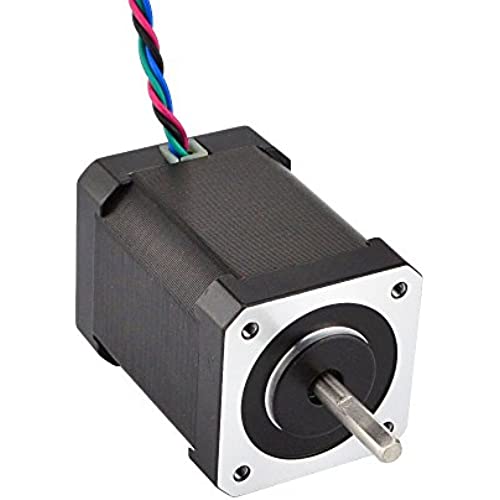

STEPPERONLINE High Torque Nema 17 Bipolar Stepper Motor 92oz.in/65Ncm 2.1A Extruder Motor

(1775 Reviews)

Price
$22.59

Quantity
(10000 available )

Total Price
Share
18 Ratings
16
0
0
0
2
Reviews
  • sultan melibary

    > 24 hour

    strong torque for my project

  • LionCat

    > 24 hour

    Small size for torque in a NEMA 17 MOUNTING

  • leland modoc

    > 24 hour

    Came exactly as advertised. was packaged extremely well.

  • John

    > 24 hour

    These seem to be great steppers, beefy, solid, work well on my DIY CNC machine and are producing reliable results.

  • Biggies Equipment

    > 24 hour

    Great little motor and after running hard it was not very hot always a good sign of good quality.

  • Dan

    > 24 hour

    These are great steppers. I am using them in a new 3D printer build. They have a lot of torque do not get very warm after hours of printing.

  • Emelie Davis

    > 24 hour

    no trabajo y lo debolvi

  • Luis G. López

    > 24 hour

    Easy to install using the matching color cables, and enjoy the power

  • Brackish Water

    > 24 hour

    OK, so I should not have assumed there would be Dupont or JXT plug on the end, but I have have purchased about twenty stepper motors of various sizes from this company over the years and they all came with plugs. I expected this one to be no different. Now I have to cut a plug off another good stepper motor and solder it to the open leads in order to use this one. If this is Steppers Onlines idea of saving a few pennies, then it is the last of anything they sell that I will be buying from them. Really disappointed in them. Also, quite a few of the 5-star reviews are highly suspect as having been written by actual users of stepper motor users. I will be looking elsewhere in future.

  • Bryan F.

    > 24 hour

    Upgrade for stock stepper motors on 3d printer. Fixed shifting layers, and missed steps.

This is one of strongest bipolar Nema 17 stepper motor with 1.8 deg. step angle (200 steps/revolution).
Each phase draws 2.1A, allowing for a holding torque up to 65Ncm(92oz.in).

Electrical Specification:

* Manufacturer Part Number: 17HS24-2104S
* Motor Type: Bipolar Stepper
* Step Angle: 1.8 deg.
* Holding Torque: 65Ncm(92oz.in)
* Rated Current/phase: 2.1A
* Phase Resistance: 1.6ohms
* Inductance: 3mH+/-20%(1KHz)

Physical Specification:

* Frame Size: 42 x 42mm
* Body Length: 60mm
* Shaft Diameter: 5mm
* Shaft Length: 24mm
* D-cut Length: 15mm
* Number of Leads: 4
* Lead Length: 500mm
* Weight: 500g

Connection:

Black(A+), Green(A-), Red(B+), Blue(B-)

Warning:

Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.
