5PCS FEP Film 200x140x0.15mm for ANYCUBIC Photon, Photon S, ELEGOO Mars 2 Pro, Mars 3, Mars 3 Pro, Phrozen Sonic Mini 4K, Creality Halot-one, LD-002H LCD 3D Printer
-
Earl
> 24 hourThat was really no big issue. The problem is, they wont let you return the item. Despicable return policy. You got your first and last dollar from me.
-
Quintin
> 24 hourNice buy
-
Chris Giuliano
> 24 hourThese should have come with the O.E.M. printer. Great value!
-
Randy moler
> 24 hourWorked great. Quick shipping
-
3DPrintSOS
> 24 hourThere FEP screens are super affordable and work perfectly. If you have a smaller printer, like the Photon Zero, you can cut each sheet in half giving you double the value. Zero issues since installing the first on on my machine.
-
Lindsey Kaufman
> 24 hourDO NOT USE WITH MARS UNLESS YOU WANT FAILED PRINTS AND SKIN IN YOUR RESIN!!! I bought these films for my Elegoo Mars. As soon as I started using them I started noticing issues with my prints- they would fail, or delaminate, or there would be cracks or gaps in the print… I also started developing an odd “skin” in my resin during printing and the models eventually stopped sticking to the build plate all together. I checked everything- my Z motor, the drive rod, replaced the screen even. I saw a reddit post where a user was having the exact same issues after using non-Elegoo FEP. I switched my film back to an official Elegoo FEP and instantly ALL of the problems disappeared. Every print has been perfect since and there hasn’t been a fleck of that “skin”. Bottom line- I will NEVER use these again. They obviously leak light quite a bit, resulting in the poor quality and the skin issues.
-
Zaria Larson
> 24 hourGood FEP
-
Kevin Richardson
> 24 hourI havent had any fails with them, and theyre more resilient
-
Steve Benton
> 24 hourWatch some youtube videos before you install these, but once it theyre on it allowed me to print as well as the one that came factory installed.
-
Ben
> 24 hourA fine product with no issues
|
|
|
|
|
|---|---|---|---|---|
| 140*200mm FEP Film | 200*260mm FEP Film | 260*380mm FEP Film | 210*300mm FEP Film | |
| Size | 140*200*0.15mm | 200*260*0.15mm | 260*380*0.15mm | 210*300*0.15mm |

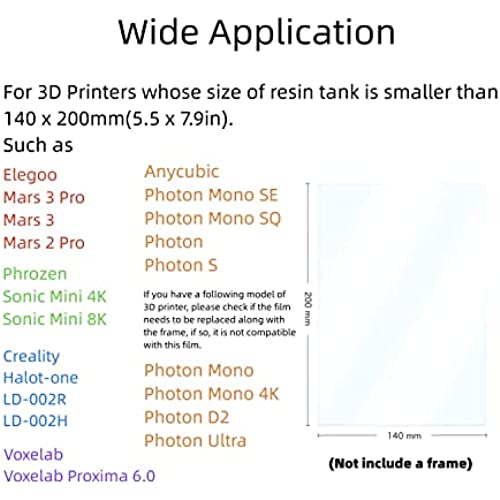

Compatible Models:
Creality Halot-one, LD-002R, LD-002H;
ELEGOO Mars, Mars 2 Pro, Mars 3, Mars 3 Pro;
ANYCUBIC Photon, Photon Mono 4K, Photon Mono SE, Photon Mono SQ, Photon Mono S, Photon zero;
Phrozen Sonic Mini 4K, Voxelab Proxima 6.0, Longer orange 10, Longer orange 30, Longer orange 4K,
and other desktop LCD 3D Printers which has fep vat size no more than 200x140 mm/7.87*5.51 in(L*W).
ATTENTION: This release film doesn"t have a frame, so it is not suitable for the models that need to replace with the release film with a sealed frame. If your 3D printer is Anycubic Mono 4K, please check whether your resin vat should be replaced with the film with a frame or not.
|
|
|
|
|---|---|---|
High TransmittanceMore than 95% light transmittance 3D release film has high light transmittance and light transmittance of more than 95%, which makes the printed products more perfect |

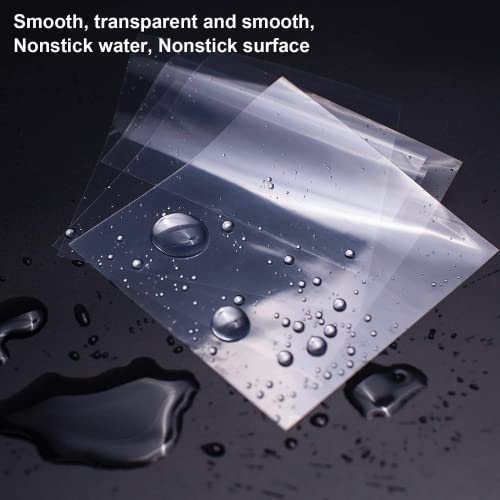

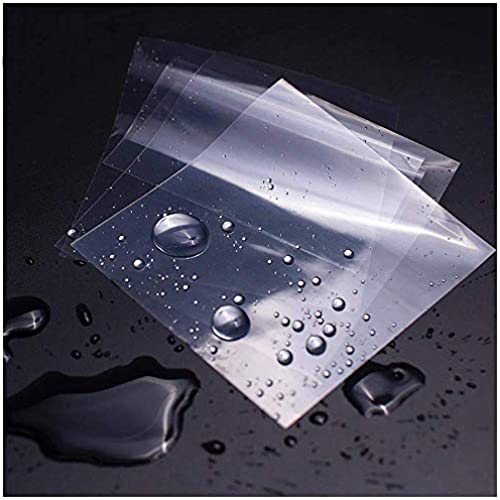

High Purity FEP ResinFEP release film is made of ultra-high purity FEP resin. It has excellent non-stick, high-temperature resistance, insulation, mechanical properties, and wear resistance characteristics. |
Tear off the protective filmIn order to prevent the FEP film from being damaged and friction between FEP film and FEP film, we have protective films on both sides of each film, please tear them off before use. |
|
|
|
|
|---|---|---|

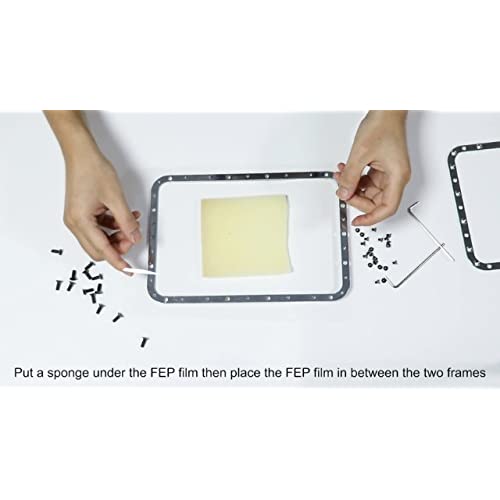

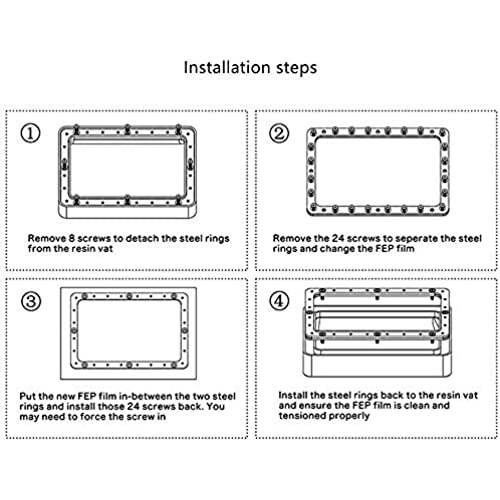

Step 1Remove screws to detach the steel rings from the resin vat. Tear off the protective film on both sides and take out the FEP film in the middle. |

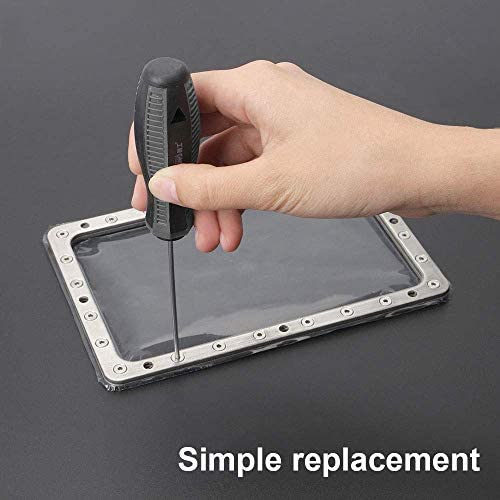

Step 2Put the new FEP film in-between the two steel rings and install those screws back. You may need to force the screw in. |
Step 3Use a utility knife to cut off the excess release film on the edge and ensure the FEP film is clean and tensioned properly |
