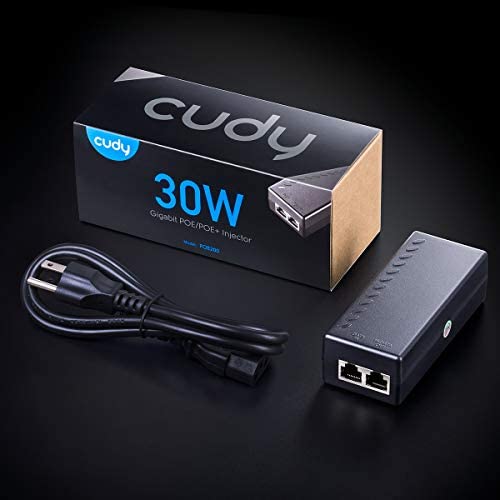

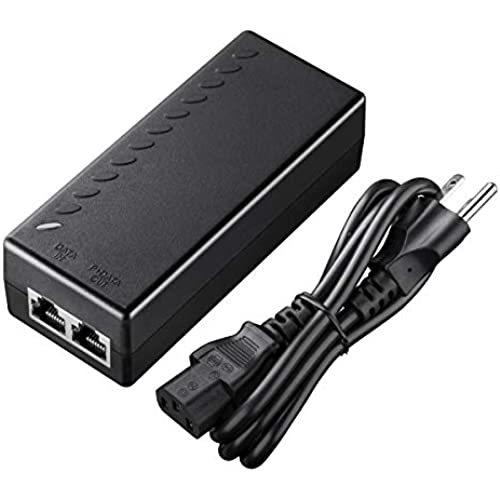

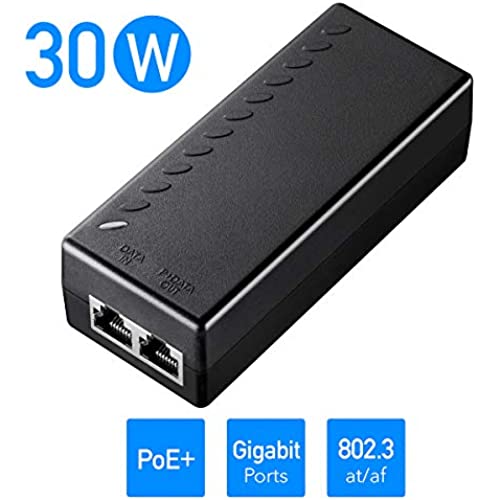

Cudy 2023 New 30W Gigabit PoE Injector Adapter, 30W,10/100/1000Mbps RJ-45, IEEE 802.3af / 802.3at Compliant, up to 100 Meters (325 Feet), PoE200
-
raymond reyes
> 24 hourSo far product is working great thanks
-
KMR
> 24 hourVery quick to install. It took longer to read about active/passive PoE (to make sure I got what I needed) than it did to install. If I needed another I’d definitely buy this again.
-
GO-OG
> 24 hourDead
-
Micheal
> 24 hourExpensive but works with no issues.
-
Neets
> 24 hourWorks well. Thank you
-
Wizechatmgr
> 24 hourWorks great
-
RonG
> 24 hourPut at camera end of 200 feet of cat5E cable to POE Reolink camera. Great economical way to supply power to a long run. Very fast data speed and showed up same recorder address as before.
-
Travis Moore
> 24 hourI used this to power outdoor AP. Works fine
-
C. Rorris
> 24 hourWorked great.
-
Deb G
> 24 hourINSTRUCTIONS WERE EASY, PLUGGED IT RIGHT IN AND EVERYTHING WORKED!
Input Power Requirements:
- AC Input Voltage: 100~240V
- AC Input Current: 0.5A 100~240V
- AC Frequency: 50 to 60 Hz
Environmental Conditions:
- Operating Ambient Temperature: 0 to 40°C
- Operating Humidity: Maximum 85%, Non-condensing
- Storage Temperature:-40 to 40°C
- StorageHumidity: Maximum 90%, Non-condensing
Cudy 30watt Gigabit 802.11at/af PoE+ Injector

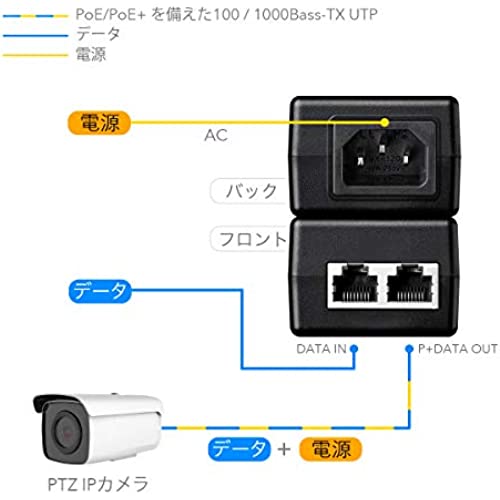

PoE Output :
- Pin Assignment and Polarity: 1/2 (-), 3/6 (+)
- Output Power Voltage: Typical:50V, Support any 802.3af / 802.3at device (44V ~ 50V)
- User Port Power Output: 30W max
Protection:
- Over current protection
- Over load protection
- Over voltage protection
- Anti-interference protection

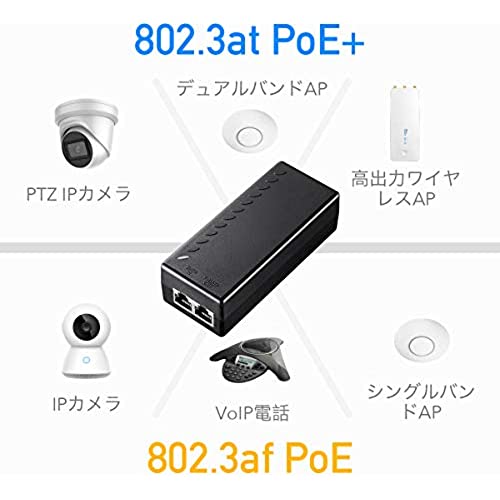

Application Scenario
|
|
|
|
|---|---|---|
SurveillanceWorks with IP Cameras for home and office, small business |
VoIP Conference CallWorks with VoIP phones for business conference |
Wi-Fi CoverageWorks with WiFi APs for office and business |
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| POE200 | POE220 | POE300 | POE400 | PoE+ Extender | Outdoor PoE+ Extender | |
| PoE Output | 30 Watts Max, Typical Voltage: 50V, Support any PoE/PoE+ device (44V ~ 50V) | 2 x 30 Watts Max, Typical Voltage: 50V, Support any PoE/PoE+ device (44V ~ 50V) | 60 Watts Max, Typical Voltage: 50V53V, Support any PoE/PoE+ device (44V ~ 53V) | 90 Watts Max，Typical Voltage:56V, Support any PoE/PoE+/PoE++ device (44V ~ 56V) | 22 Watts Max, Support any PoE/PoE+ device | 25 Watts Max, Support any PoE/PoE+ device |
| 802.3af / PoE | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 802.3at / PoE+ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 802.3bt / PoE++ | - | - | - | ✓ | - | ✓ |
| Ethernet port | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps |
| Pin Assignment and Polarity | 1/2 (-), 3/6 (+) | 1/2 (-), 3/6 (+) | 1/2 (-), 3/6 (+), 4/5(+), 7/8(-) | 1/2 (-), 3/6 (+), 4/5(+), 7/8(-) | Input: 1/2 (-), 3/6 (+) , 7/8 (-), 4/5 (+). Output:1/2 (+), 3/6 (-) | Input: 1/2 (-), 3/6 (+) , 7/8 (-), 4/5 (+). Output:1/2 (+), 3/6 (-) |
| Input Voltage | 100 ~ 240 V | 100 ~ 240 V | 100 ~ 240 V | 100 ~ 240 V | - | - |
| Over current protection | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Over load protection | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Over voltage protection | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
