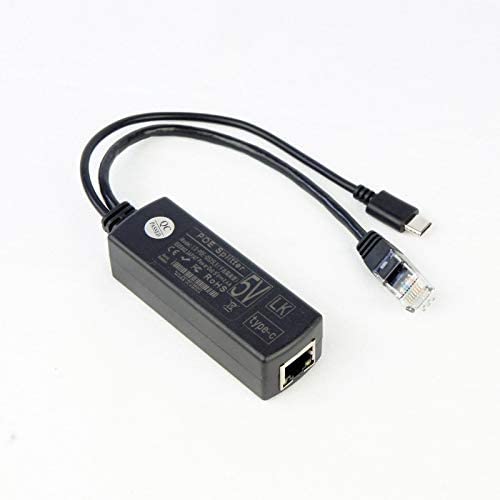

DSLRKIT Gigabit USB Type C Active PoE Splitter 48V to 5V IEEE802.3af Power Over Ethernet for Raspberry Pi 4 4B

(1623 Reviews)

Price
$12.50

Quantity
(10000 available )

Total Price
Share
41 Ratings
26
6
1
4
4
Reviews
  • Bruce B. Platt

    > 3 day

    Works great with raspberry pi 4

  • me

    > 3 day

    Works well for the DeskPi Pro case and 2Tb HDD

  • Sean Reifschneider

    > 3 day

    I got 3 of these to use with my Google WiFi mesh nodes, and they worked brilliantly! They each have a link light and what looks like an activity light, but that never flashes. My switch is an Aruba S2500. This has been a really nice, cost effective way to reduce cable clutter.

  • Aaron Turner

    > 3 day

    So this will work with a RasPI 4... BUT it is only 2.4A not 3-4A like AC adapters for the RasPI 4. The result is that it will power the 4, but there may not be enough power to fully power the board and performance may suffer or you may have stability issues. This is why I get warnings from OctoPrint that there isnt enough power. Honestly, this would get 5 stars but this was marked specifically for the RasPI 4 and for that its just not good enough. That said, it really does depend on what you are using your PI for... it might be fine.

  • D Angeles

    Greater than one week

    I like this poe switch. Cables feel heavy duty. Item is working properly. This is USB C and ethernet connection.

  • Kenny_T

    > 3 day

    Very good product. Does exactly what it supposed to do

  • mhennessie

    > 3 day

    Got these so I could use PoE with 5 x 1st gen Google WiFi points. My house is wired for cat 5E so I was able to power them from a central location using a PoE switch and have a UPS connected to the switch so they dont go out when the power flickers in my rural area. So far it works great and the speeds did not change.

  • Matthew Luce

    > 3 day

    Hubitat C8 doesn’t have native POE. I’m using this to get around that. Works great

  • Donald A. Newell Jr.

    Greater than one week

    Does the job intended.

  • Lea Handler

    Greater than one week

    Used to power a raspberry pi 4 overclocked to 2ghz from about 20 feet away. Better value than the Poe hat.

Note:
The POE splitter must be connected to the POE switch, POE midspan or 48V~52V POE injector for proper operation.

RJ45 female INPUT Port:
Support the IEEE 802.3af/at the Power over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Adapter

Specification:
Compliant with IEEE802.3af/at
Isolation: 2.5kV
Power Input: DC44~57V
Power Output: DC5V 2.4A
Data&Power INPUT Port: from RJ45 female (Compliant with IEEE802.3af/at PoE)
Data Output Port: RJ45 Male
Power Output Port: Micro USB Power Plug
Data Transfer Rate: 10/100/1000 Mbps
Data Pin: RJ45 pin 12345678
Devices will be detected before poe input
Power Pin:support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)
Body size: 80 x 27x 22 mm
DC cable length:165mm
RJ45 Modular Plug cable length:155mm
Weight : 55g
Operation Temperatue:-20℃ ~ 45℃
Storage Temperature:-30℃ ~ 70℃

Item Included:
10/100/1000Mbps Active PoE Splitter(USB type-C Power Plug) x1
