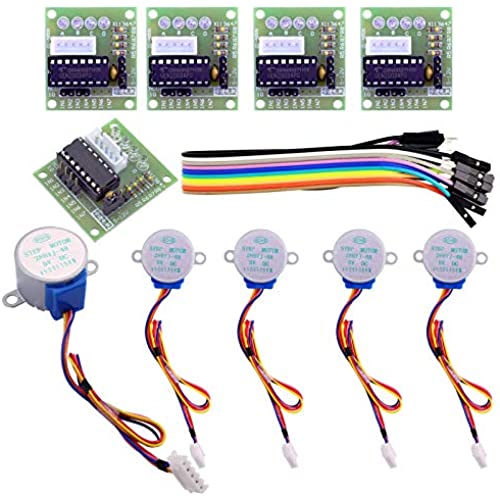

ELEGOO 5 Sets 28BYJ-48 ULN2003 5V Stepper Motor + ULN2003 Driver Board Compatible with Arduino
-
Leader,of,freedom.-Rosie
> 3 dayEasy to use, An they r actually durable
-
Freddy Ronaldo Ramirez Recinos
> 3 daynice product
-
Ben
> 3 dayOf the 5 ULN2003 boards, 4 had bad leds. One board had zero working leds.
-
lmc
> 3 daysuch a deal
-
J. Billhofer
> 3 dayThe set seems to be of good quality, is functional and well packaged.
-
Deborah L Lienhart
> 3 daySuper easy to connect, even easier to code. Output one high, and the other 3 low. They are geared to turn pretty slow which is perfect for my application!
-
cpr
> 3 dayWorked for the project I intended to do. Not much flexibility on operation especially the board.
-
NerdyPhysicsGuy
> 3 dayThese motors actually feel pretty good and are relatively easy to control. Theyll even take a 3.3V control input, which makes them great for STM32 and STM8. Their step size is really fine due to their gearing. However, they do have quite a bit of backlash, which hinders their repeatability somewhat. Nevertheless, theyll be good for learning how to control stepper motors and for places where accuracy isnt too critical. They arent particularly strong at 5V and tend to stall out under light to medium loads. Despite their voltage rating, they run perfectly fine at 9V (Do so at your own risk!) and are definitely more powerful, but get much warmer, as to be expected. They are a bit noisy due to the gearing, but are definitely on the quiet side when it comes to steppers. Overall, theyre a good starting point for stepper motor control, and perhaps even small robotics applications. And for the price, theyre pretty good at what they do. Plus, the plastic box they include is handy for storing the motors, or other projects.
-
R Halverson

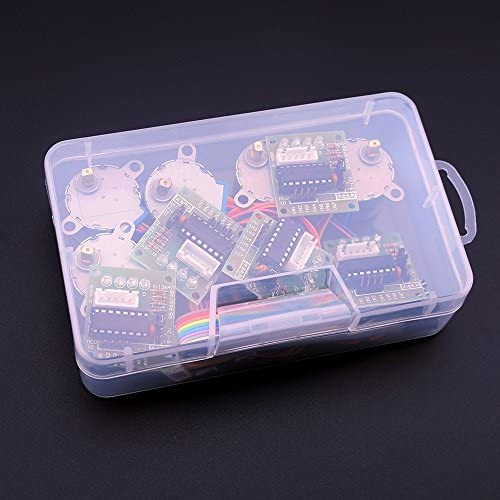

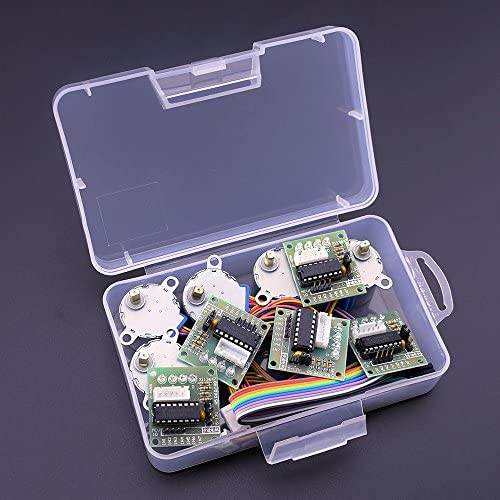

> 3 dayIf you want to get into stepper Motors this is by far the best way to go great design comes in an awesome little case to keep all your gizmos in order
-
A S.
> 3 dayI have purchased many Elegoo products before. This is the first one that I was disappointed with just looking at the contents. Each control board requires 6 wires (2 power: normally back and white ; 4 control: normally brown, red, orange, and yellow) - that means you need 30 wires connect all the boards to the processor/power supply. I got 10 wires in my purchase, just a single strand of 10 dupont wires. You need to supply the other 20 wires, and if you want to have them color coded for standard wiring, you are going to need a few standard strands of dupont cables (female on the control board side, male or female on the CPU side, depending on your setup). The control board is also brown, instead of green as shown, not too big of a deal unless you want your electronics showing, and need to match other control boards. I havent even tried these yet, will update if there is a problem.

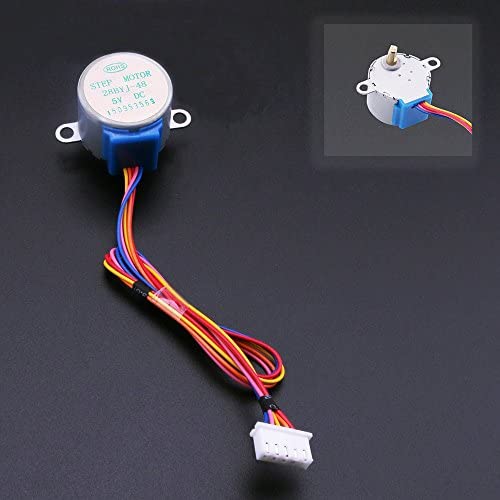

BYJ48 STEPPER MOTOR
Stepper Motor is a type of electromagnetic device which moves in discrete steps. This has several coils, the center shaft has a series of magnets mounted on it, and the coils surrounding the shaft are alternately given current or not, creating magnetic fields which repulse or attract the magnets on the shaft, causing the motor to rotate.
This Unipolar Stepper Motor 28-BYJ48 is provided with five wires and four coils. The center connections of the coils are tied together and usually used as the power connection. They are named unipolar steppers because power always comes in on this one pole.
Specification

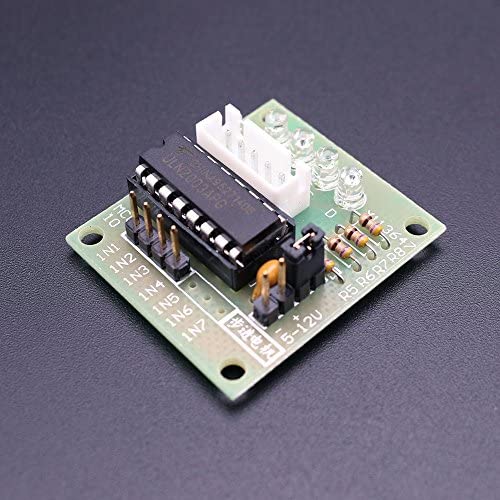

- A, B, C, D four-phase LED indicates the status of the stepper motor work.
- Stepper motor with a standard interface, when used directly pluggable.
- 5 line 4 phase can be used for ordinary ULN2003 chip driver, connect to the 2 phase , support the development board, with convenient use, direct docking.
- Rated Voltage: DC5V 4-phase
- Insulation Resistance: >10MΩ (500V)
- Dielectric Strength: 600V AC / 1mA / 1s
- Step angle: 5.625 x 1/64
- DC Resistance: 200Ω±7% (25C)
- Reduction ratio: 1/64
- Insulation Grade: A
- No-load Pull in Frequency: >600Hz
- No-load Pull out Frequency: >1000Hz
- Pull in Torque: >34.3mN.m(120Hz)
- Detent Torque: >34.3mN.m
- Temperature Rise: < 40K(120Hz)
Programm Code Example
The Arduino IDE support a library for stepper motor, after connect motor with microcontroller you can upload the sketch on to the microcontroller. The following is the code of an example program, it can be modified according to your needs:
#define IN1 8
#define IN2 9
#define IN3 10
#define IN4 11
int Steps = 0;
boolean Direction = true;
void setup() {
Serial.begin(9600);
pinMode(IN1, OUTPUT);
pinMode(IN2, OUTPUT);
pinMode(IN3, OUTPUT);
pinMode(IN4, OUTPUT);
}
void loop() {
for(int i=0; i<4096; i++){
stepper(1);
delayMicroseconds(800);
}
Direction = !Direction;
}
void stepper(int xw) {
for (int x = 0; x < xw; x++) {
switch (Steps) {
case 0:
digitalWrite(IN1, LOW);
digitalWrite(IN2, LOW);
digitalWrite(IN3, LOW);
digitalWrite(IN4, HIGH);
break;
case 1:
digitalWrite(IN1, LOW);
digitalWrite(IN2, LOW);
digitalWrite(IN3, HIGH);
digitalWrite(IN4, HIGH);
break;
case 2:
digitalWrite(IN1, LOW);
digitalWrite(IN2, LOW);
digitalWrite(IN3, HIGH);
digitalWrite(IN4, LOW);
break;
case 3:
digitalWrite(IN1, LOW);
digitalWrite(IN2, HIGH);
digitalWrite(IN3, HIGH);
digitalWrite(IN4, LOW);
break;
case 4:
digitalWrite(IN1, LOW);
digitalWrite(IN2, HIGH);
digitalWrite(IN3, LOW);
digitalWrite(IN4, LOW);
break;
case 5:
digitalWrite(IN1, HIGH);
digitalWrite(IN2, HIGH);
digitalWrite(IN3, LOW);
digitalWrite(IN4, LOW);
break;
case 6:
digitalWrite(IN1, HIGH);
digitalWrite(IN2, LOW);
digitalWrite(IN3, LOW);
digitalWrite(IN4, LOW);
break;
case 7:
digitalWrite(IN1, HIGH);
digitalWrite(IN2, LOW);
digitalWrite(IN3, LOW);
digitalWrite(IN4, HIGH);
break;
default:
digitalWrite(IN1, LOW);
digitalWrite(IN2, LOW);
digitalWrite(IN3, LOW);
digitalWrite(IN4, LOW);
break;
}
SetDirection();
}
}
void SetDirection() {
if (Direction == 1) {
Steps++;
}
if (Direction == 0) {
Steps--;
}
if (Steps > 7) {
Steps = 0;
}
if (Steps < 0) {
Steps = 7;
}
}
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
