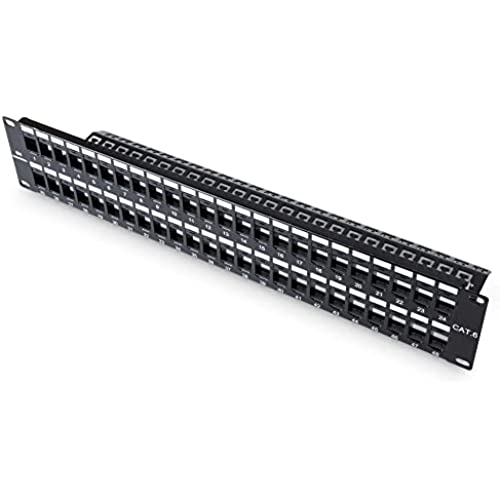

Cable Matters Rackmount or Wall Mount 2U 48 Port Keystone Patch Panel with Cable Management and Support Bar (19-inch Blank Patch Panel for Keystone Jacks/Keystone Panel)
-
Frank Mitchell
> 24 hourGreat and easy to use
-
Christina Frotscher
> 24 hourGood quality, very sturdy. Only downside (for me) was that I could only use every other keystone slot, even when using Cable Matters keystone jacks. With this kind of keystone jack, the cables pass through the keystone and exit on the sides, where you clip them off. But even with very close trimming, the ends touch the ones on the next keystone, giving you shorts and crosstalk, because the fit is really tight. That also prevents you from applying electrical tape to isolate the jacks. Using every other slot gives you enough clearance to prevent this.
-
RD
> 24 hourgreat idea, however the spacing needs to be a little more between sockets (keystones). if the wires are NOT totally trimmed on the sides of the socket, they can short out touching the next one inline. if POE, see the sparks fly!!
-
Quacey Elias
> 24 hourVery good product. I was able to mount my CAT8 Keystones in this patch panel.
-
Paul D.
> 24 hourGood for this price.
-
Ryan
> 24 hourThis is a nice keystone patch panel. My only gripe is it says CAT6. Nothing about this makes it CAT6 compatible. I would rather it not have this text.
-
Peet Peet
> 24 hourwish i had bought this first instead of the regular patch panel it makes it so easy to service 1 port without pulling the whole thing out and dragging pounds of cable FIY- the regular cable matters cat6 keystone fit just great in this, unlike previous comments.
-
Tex
> 24 hourI had no issues getting all 24 CAT6 keystone connectors to fit, but I also used Cable Matters keystones. The cable relief tie-offs, included tie wraps, quality of material used and getting a 24 port 1U patch for this price make this a great patch panel.
-
Jenifer Willms
> 24 hourNice and clean look
-
KeepIt100
> 24 hourGood quality, and fits standard keystone jacks just fine.
Keystone Jack Convenience
The Cable Matters 2U 48-Port Keystone Blank Patch Panel leverages the convenience of keystone jacks for terminating multimedia cables in a single location. Snap in your keystone of choice for RJ45, RG6 coax, fiber, HDMI, stereo, and more. A heavy-duty strain relief bar with labeled keyholes for cable ties organizes and supports 48 cables.
Important Notes
- Wall mounting requires a bracket with clearance for the cable strain-relief bar.
- Fits standard keystone jack size. Proprietary keystone jacks must be used with the products from the same vendor.
Package Contents
- 1 x 48-Port Blank Keystone Patch Panel

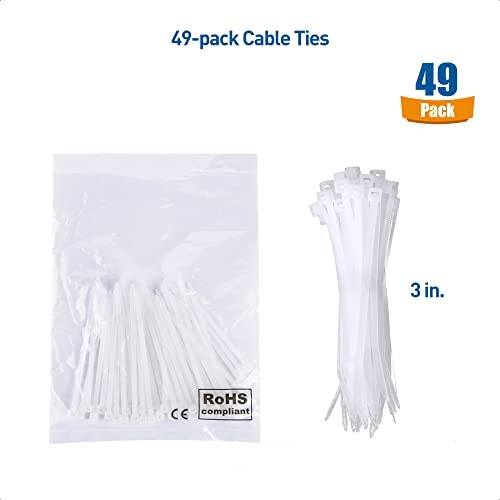

- 49 x 3" Cable Ties
- 1 x Instruction Sheet

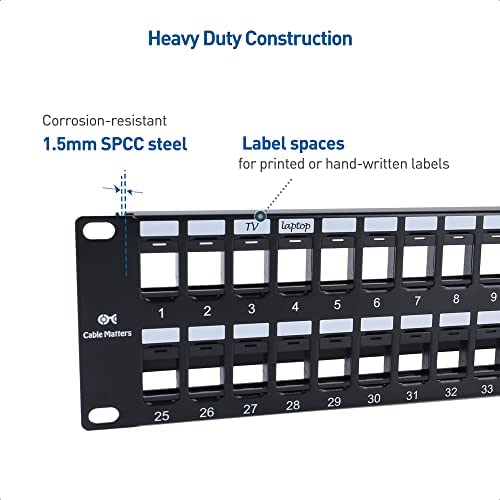

Heavy Duty Construction
1) Label spaces for printed or hand-written labels
2) Corrosion-resistant 1.5mm SPCC steel

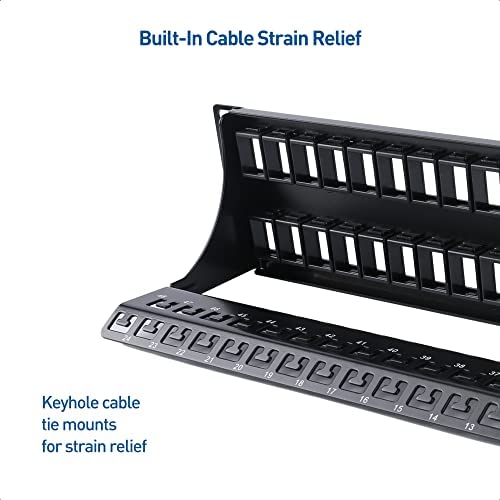

Built-In Cable Strain Relief
3) Keyhole cable tie mounts for strain relief
4) Designed to install in a standard 19-inch rack
Note: Mounting hardware is NOT included

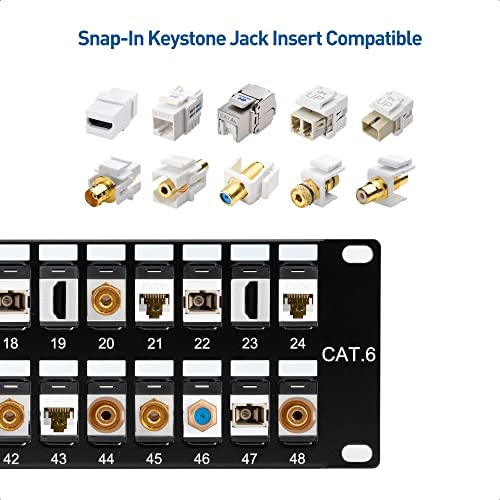

Snap-In Keystone Jack Insert Compatible
- RJ45 network coupler
- RJ45 jack
- LC MM Fiber coupler
- RG6 coax cable coupler
Cable Strain Relief Bar
- Heavy duty bar supports cable weight
- 48 keyholes for cable ties
- Numbered ports for organization
- Includes 49 3-inch cable ties

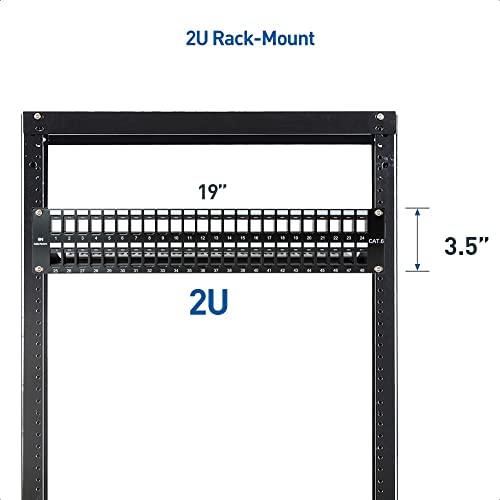

2U Rack-Mount
- Dimensions: (H x W) 3.5” (2U) x 19”
- Cable Bar depth: 3.3 inches
- Allow clearance for cable bar depth
- Weight: 2 lb
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| 2U 48-Port Keystone Blank Patch Panel | RJ45 Port Dust Covers | 1U Wall-Mount Panel Bracket | 2U Server Rack Shelf | Shielded Patch Panel | Vertical Patch Panel | |
| UL Listed | ✓ | ✓ | ||||
| 19" Rack or Wall Mount | ✓ | ✓ | ✓ | ✓ | ||
| Number of Ports | 48-Port | n/a | n/a | 24-Port | 12-Port | |
| Mount Height | 2U | 1U | 2U | 1U | n/a | |
| Part Number | 180115 | 180113 | 180037 | 180118 | 180028 | 180058 |
