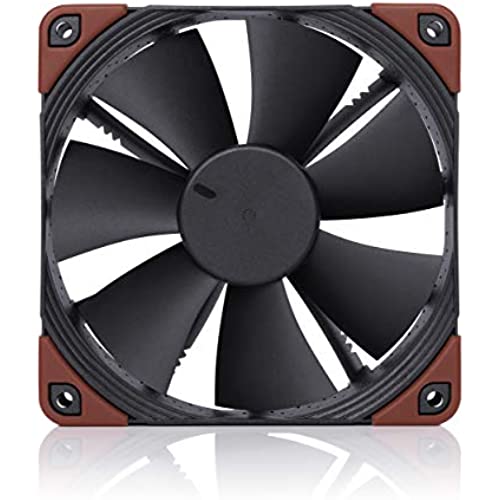

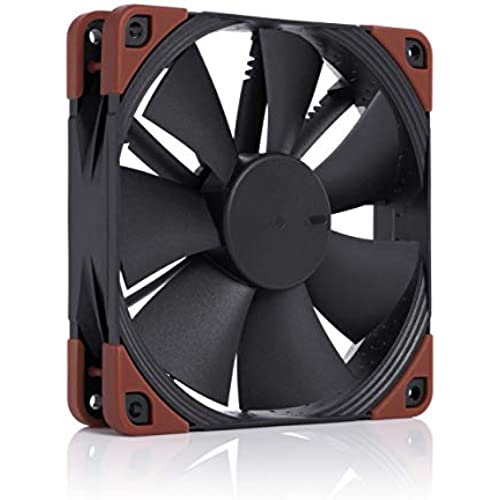

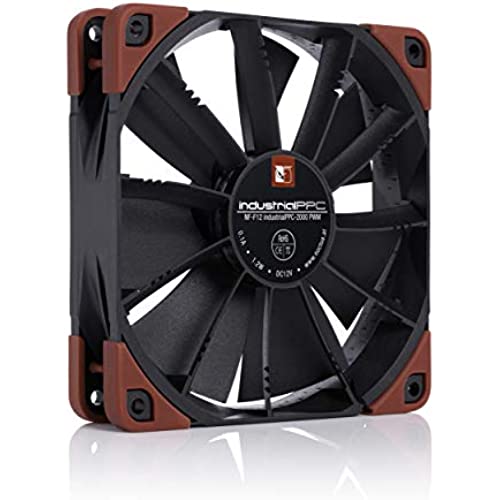

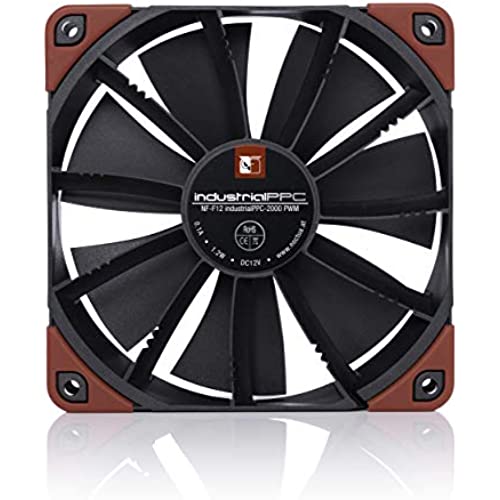

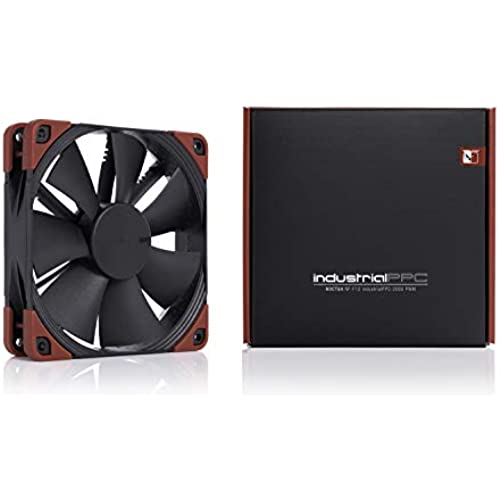

Noctua NF-F12 iPPC-2000 PWM, Heavy Duty Cooling Fan, 4-Pin, 2000 RPM (120mm, Black)
-
Lou
> 24 hourGreat fan. Moves lots of air and its still quiet.
-
Kenneth R. Beamish
> 24 hourI used this fan in a custom installation on my Dell all-in-one.
-
Dylan Crook
> 24 hourGood job Noctua.
-
Kaimen Alvarado
> 24 hourI am currently using this as the main intake fan for my mini-itx build. Great power and RPM, very quiet and makes everything properly cool to the touch. I run this fan on silent mode just to relish in the emptiness of noise.
-
ed
> 24 hourAbsolutley, the best fans ive ever had. Running them on a manual lamptron fan controller, at 1500rpm the noise is way less, and the performance is the same as my old corsair sp 120s at 2500 rpm. So dropped noise for same performance. Always a good trade off.
-
Guillermo
> 24 hourI got a Hydro Series H100i v2 liquid CPU cooler, which I installed on the top of my case as an exhaust. One of the fans started to make a very loud rattling sound on high speeds, so I replaced it. I was choosing between this and the 3000 PWM version, but chose that one because of the many reviews that mentioned that it was silent. But it was way too loud, even at the lowest speed. So I got this fan, and it is way better. The 3000 PWM fan pushes a lot more air, but the difference in temperature was too small. And there was a great difference in noise.
-
Pless
> 24 hourSuperior fans. enough said
-
Derp
> 24 hourWay better than stock. Put it on my water cooling to replace the squealing factory corsair fans.
-
T
> 24 hourAmazing fan
-
Joe
> 24 hourWhat more can I add? Nothing. Its perfectly easy. Good fan for a good price. Not much else to say about it
Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-F12 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-F12 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-F12 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology ensures an MTTF of over 150.000hrs. Topped off with Noctua’s trusted reliability, the NF-F12 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.
Focused Flow frame
Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.
|
|
|
|
|
|---|---|---|---|
2000rpm industrialPPC versionThanks to its elevated 2000rpm top speed, the NF-F12 industrialPPC-2000 provides a significant performance boost over the 1500rpm retail version. Combined with the industrialPPC series" robust polyamide construction and advanced protection features, this makes the fan ideal for challenging industrial applications. |
Three-phase motor designWhile most axial fans use single-phase motors with 4 slots, Noctua"s industrialPPC fans feature a three-phase design with 6 slots, which provides smoother transitions between the slots and thus allows for even higher running smoothness, further reduced vibrations and unprecedented energy efficiency. |

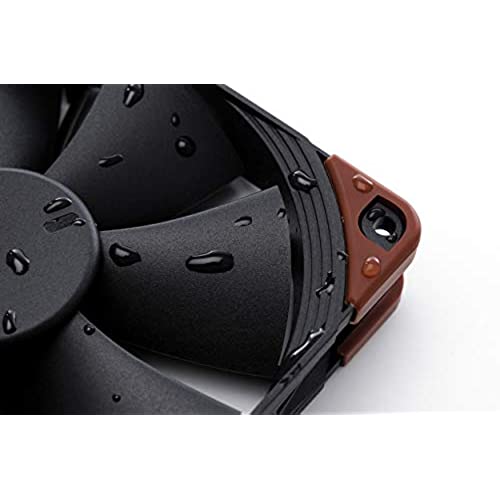

IP52 water- and dust protectionThanks to a special varnish coating that covers the motor and PCB, the NF-F12 industrialPPC complies with the ingress protection rating IP52. This means that it is not only highly dust resistant but also withstands dripping water equivalent to 3mm rainfall per minute. |
Fibre-glass reinforced polyamide constructionBoth the impeller and the frame of Noctua’s industrialPPC fans are made entirely from fibre-glass reinforced polyamide. This material can withstand temperatures up to 140°C and makes the fans even more robust and break-proof than Noctua’s standard fibre-glass reinforced PBT fans. |
Please Note:
The industrialPPC models are high-speed fans for industrial applications. As such, they are not as quiet as other Noctua fans and less suited for low-noise PC builds.
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| NF-F12 industrialPPC-2000 | NF-F12 industrialPPC-2000 PWM | NF-F12 industrialPPC-2000 IP67 PWM | NF-F12 industrialPPC-3000 PWM | NF-F12 industrialPPC-24V-2000 SP IP67 PWM | NF-F12 industrialPPC-24V-3000 SP IP67 PWM | |
| Connector | 3-Pin | 4-Pin PWM | 4-Pin PWM | 4-Pin PWM | 4-Pin PWM | 4-Pin PWM |
| Voltage | 12V | 12V | 12V | 12V | 24V | 24V |
| RPM | 2000 | Max: 2000 / Min: 450 | Max: 2000 / Min: 450 | Max: 3000 / Min: 750 | Max: 2000 / Min: 450 | Max: 3000 / Min: 750 |
| Acoustical Noise | 29,7 dB(A) | 29,7 dB(A) | 29,7 dB(A) | 43,5 dB(A) | 29,7 dB(A) | 43,5 dB(A) |
| Static pressure | 3,94 mm H₂O | 3,94 mm H₂O | 3,94 mm H₂O | 7,63 mm H₂O | 3,94 mm H₂O | 7,63 mm H₂O |
| Airflow | 121,8 m³/h | 121,8 m³/h | 121,8 m³/h | 186,7 m³/h | 121,8 m³/h | 186,7 m³/h |
| Ingress Protection Rating | IP52 | IP52 | IP67 | IP52 | IP67 | IP67 |
| Size | 120x120x25 mm | 120x120x25 mm | 120x120x25 mm | 120x120x25 mm | 120x120x25 mm | 120x120x25 mm |
