TCP/IP 4 Door Entry Access Control Panel Kit Electric Strike Fail Secure NO Mode Lock Enroll RFID USB Reader 110-240V Power Supply Box RFID Reader Phone APP remotely Open Door

(972 Reviews)

Price
$203.99

Style
Quantity
(30000 available )

Total Price
Share
215 Ratings
205
7
0
1
2
Reviews
  • suri h

    > 24 hour

    Not the easiest to set up, it took some time, but works as promised. This system is also very durable as weve been using it on a commercial door that gets a lot of traffic and the system has held up. Customer service has been very responsive and helpful! I highly recommend.

  • Gene Updegraft

    > 24 hour

    This product worked as advertised. Installation was easy and the instructions were clear enough that I didnt have any trouble wiring the components with the control box. Response time for tech support is excellent. I had a couple of questions during set up and the response time was quick and Chen Wood answered my questions in a timely manner.

  • Kevin Riley

    > 24 hour

    Company had great customer service after the sale. Highly recommend. Prompt responses to emails and called me to clarify when I didnt understand the written instructions. Delta with 3 different ppl @ Company and all were top notch.

  • Chad W

    > 24 hour

    Price almost too good to be true - but so far, so good! Utilized cat6 23ga wire for everything.

  • Trent Taylor

    > 24 hour

    I was looking for a complete system that would allow me to secure a data center using electric door strikes, but had great logging to ensure very strict access in and out. I had been looking at systems 4 times the cost, but rolled the dice and went with this system hoping to save some money. It turned out to be a great roll of the dice as this system has worked extremely well, it is fast, and up to this point very reliable. But what pushed me over the edge is the support. I had run into a few small issues during implementation and so I emailed their support expecting a slow turn around. But I had a response within the hour and the questions I had were quickly resolved through email.

  • Bigblue

    > 24 hour

    good products very best services. called from oversea to trouble shoot my screw up.. if other product lack of supports buy this, you have first class supports. recommended my friend did buy another system. Thanks you Wood Chen for your 5 star services.

  • Rainbow1616

    > 24 hour

    This is the first of many access systems I am installing and I will certainly buy from this company again. They are always there for support. My emails were answered promptly and when the system went live I had a small issue that they resolved at 1:30 am their time! Great value for the price, I added battery backup and 600 more key-fobs and this is working perfectly. Everyone is very pleased. Thank you for the great product and even better support!

  • Summit Aerospace

    > 24 hour

    We found the right product and cannot be happier with it. Not only is it easy to use but it is also very pocket friendly. The functionality is so easy for our employees as well as for the person that manages the software. We are able to add, delete, and grant access on the software on a blink of an eye. The cards are do not get damaged like your credit cards do when close to magnets or a magnetic field. Do not bend the card because then it will not function, but this is hard to do because the card is made pretty thick. We most definitely recommend this product to anyone looking for an affordable and secure door access system.

  • Nolan Correll

    > 24 hour

    We have had this installed in the building for just over six months. It works great and gives us a log of our employees coming in and out of the building. I need some tech support today and they where very quick with responding and resolved the issue in a very friendly and fast service

  • Chris

    > 24 hour

    The system is great. Customer service is amazing. Had a lot of questions that were instantly answered.

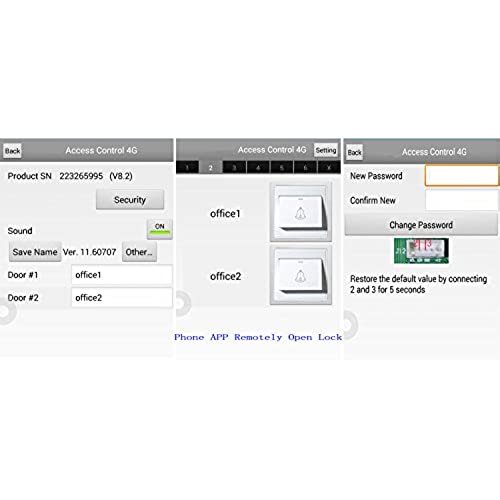

Software Supports Win7/Win8/Win10/Win11 both 32 & 64 bit ALL Windows system.Support phone app( Android and iPhone) to remotely open door, even you are in another city.

We provide video guide+Detail wire diagram,so you can easily setup System.

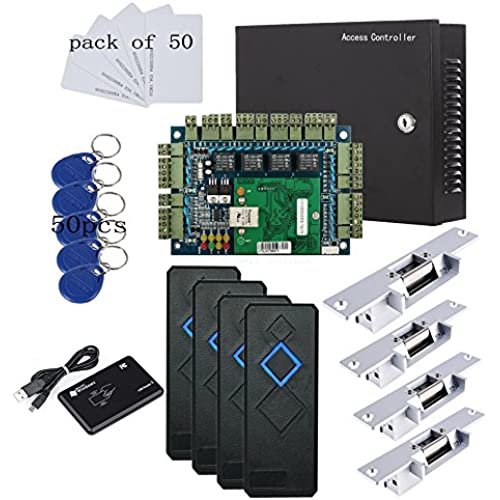

Package:

1 x 4 Door Wiegand Access Controller

1 x Power supply Box(110-240V input, 5A output, to power the whole system, also as cabinet for above control board)

1 x RFID Enroll USB Reader

4 x RFID Reader

4 x Electric Strike Fail Secure NO Mode Lock(The strike lock normally work with your exisitng Mechanic lock(turn handle) or Knob lock)

50 x RFID Keychains

50 x RFID Cards

1 x User manual with Detail Instruction/Wire diagram/Video Guide

TCP/IP 4 Door Entry Access Control Panel Kit Electric Strike Fail Secure NO Mode Lock 110V Power Supply Box RFID Reader

Metal Power Supply Box

Power Supply Box:
Power:60W, Rated Current:5A,to power the whole system
Input Voltage:110V-240V,Output Voltage:12VDC
Color of the box:black
Size of the box:279mm * 234mm * 67mm

4 Door Access Control Panel

4 Door Controller Feature:

Control 4 doors,get in the door by swiping card or password,and get out door by turn your lock handle or knob

Door controlled : 4

Support 4 readers

Control of memory up to 20,000 user / up to 100,000 event buffers

Network communication via TCP/IP

Software Supports Win7/Win8/Win10/Win11 both 32 & 64 bit ALL Windows system.

11

22

33

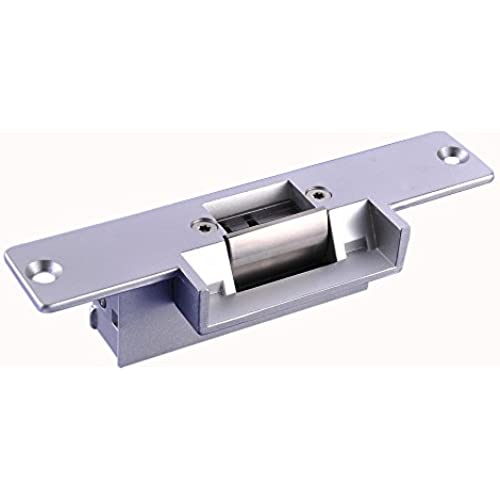

Electric Strike Fail Secure NO Mode Lock

  • Aluminum, Stainless Steel Bolt
  • Testing to 1000000 cycles
  • High-Temperature Painted,Duable and Beatiful Artical
  • Lock Size: 150Lx39.5Wx31H(mm)
  • Holding Stength: 500kg
  • Voltage: DC12V
  • Feature: NO Mode, Fail Secure Mode.(Keep Locked if power failure)
  • Suitable For: Wooden Door,Metal Door,PVC Door
  • Face plate Housing: Painted Steel
  • Bolt Housing: Stainless steel,Draw the Polishing of silk

RFID Reader

  • Size:101*43*16(mm)L
  • ess than 0.2 second Response Speed, 5-10cm Proximity RangeB
  • uilt-in Antenna& LED (Double Color LED)&Loud Speaker (Buzzer)D
  • C 9V-16V Working Voltage. Standard 12V, 70mA Working CurrentI
  • t"s Water-Proof

Enroll RFID USB Reader

  • Desktop USB reader,read card number into software so that easy programming/register user
  • Support: EM4100/EM4001/TK4100 ID card
  • Dimension: 105x70x12mm
  • Size:125K EM4100
