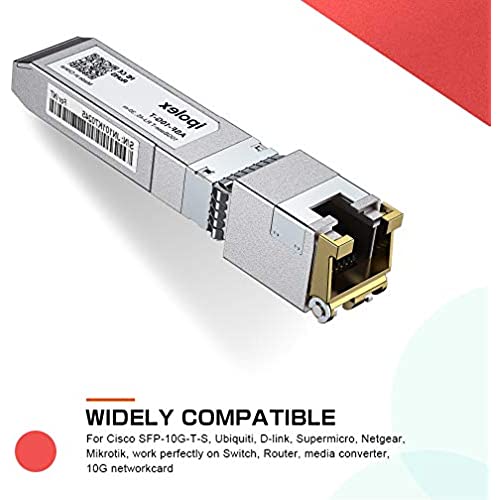

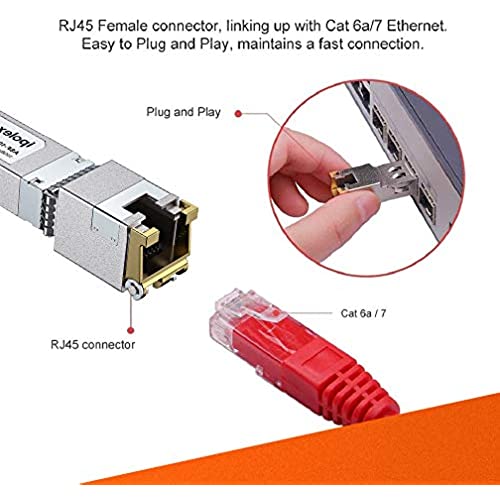

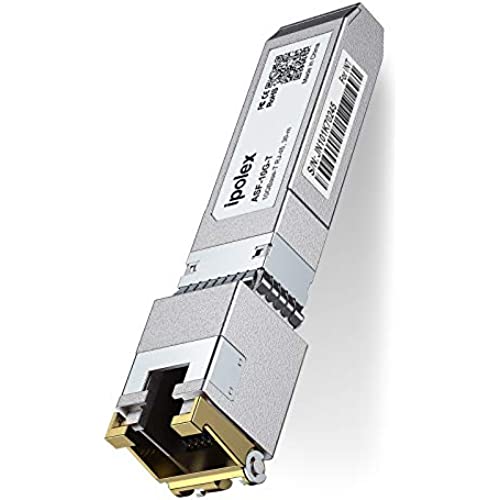

1.25/2.5/5/10G SFP+ RJ45 Copper Transceiver, 10GBase-T RJ-45 SFP+ Module, Compatible for Cisco SFP-10G-T-S, Ubiquiti UniFi UF-RJ45-10G, Mikrotik, Fortinet, Netgear, TP-Link (CAT.6a/CAT7, 30m), Ipolex
-
C. Bailey

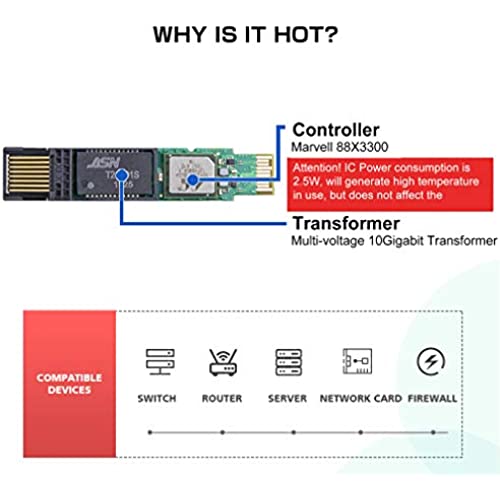

> 24 hourThis item works fine and performs well. Only complaint are that it tends to run a bit hot (although somewhat normal for 10GbE over Cat6/7) and doesnt report the manufacturer/temperature/serial number properly to my Mikrotik switch.
-
Chris
> 24 hourWorked as described and tested with great performance
-
Adam
> 24 hourAmazing device. Reccomend
-
Bernie
> 24 hourIm using these SFP plugs to go from my basement (networking room) to my study on my 1Gb system and they work well.
-
Ekim
> 24 hourseems to work great from my qnap 10g + SSD card iscsi transfers very nicely during testing.
-
A. King
> 24 hourWorks as expected for my Netgear GC110P and also my CISCO SG-102-24-NA. I have also recently installed it in a netgear GS324T S350 series.
-
Andrew
> 24 hourDoes exactly what I need it to. Runs a little hot but thats typical for this kind of module. Ive bought 4 of these so far and only one started acting up a few months later. Replacement process was pleasant and professional and all are running strong.
-
Derek B
> 24 hourWorks very well, wil;l buy more.
-
Rodrigo Damazio Bovendorp
> 24 hourWorked very well with my Ubiquiti ES-16-XG switch and an iMac Pro 2017 (builtin ethernet port) - I can get sustained 10Gbps with iperf3, and no connection drops, over 120ft of CAT7 STP with two keystone connectors in the way. (trying the same over CAT6A UTP, however, saw a permanent connection drop after about a minute of being connected)
-
cb
> 24 hourBought one to test for an ODroid H2+ / Ubiquiti US-16-XG cluster deployment. After updating the drivers for the Realtek 2.5GbE NIC I was able to hit 2.3Gb in iperf3 easily. Will be purchasing more.
More Reliable and High Quality SFP Transceiver Modules for Your Options
 10GBase-T |  10GBase-T |  10GBase-SR |  10GBase-LR |  1000Base-T |  10/100/1000Base-T |  1000Base-SX | |
|
Data Rate
| 10G | 10G | 10G | 10G | 1.25G | 10/100/1000Mbps | 1.25G |
|
Wavelength
| RJ-45 | RJ-45 | 850nm | 1310nm | RJ-45 | RJ-45 | 850nm |
|
Fiber/Cable Type
| CAT.6a/CAT.7 | CAT.6a/CAT.7 | Multimode（MMF） | Singlemode（SMF） | CAT.5e | CAT.5e | Multimode（MMF） |
|
Transmission Distance
| <30 m | 80 m | <300 m | 10 km | 100 m | 100 m | 550 m |
|
Optical Comp.
| N/A | N/A | VCSEL/PIN | DFB/PIN | N/A | N/A | PF/PIN |
|
Tx Power(dBm)
| - | - | -1~-6 | 1~-3 | - | - | -8~-4 |
|
E.R(dBm)
| - | - | ≥6 | ≥3.5 | - | - | >9 |
|
Rx Sens.(dBm)
| - | - | -11.1~-1 | -12.6~0.5 | - | - | -18~0 |
|
Temp(℃)
| 0~60 | 0~60 | 0~70 | 0~70 | 0~60 | 0~60 | 0~70 |
