ELEGOO ABS-Like 3D Printer Resin LCD UV-Curing Resin 405nm Standard Photopolymer Resin for LCD 3D Printing Grey 1000g
-
Rex
> 24 hourGood high quality resin I feel like it’s the same as anycubic brand in my opinion. Works great in photon printer.
-
Jason
> 24 hourI use an Elegoo Mars 2 Pro regularly with a few different manufacturers and this is probably my least favorite. Yes, it is less brittle but at the cost of print quality. Loose tolerances and sagging layers. I tried my existing settings, elegoo’s own recommendations, and settings recommended on Reddit, but still not 5 star quality prints. Resin has a syrupy consistency which is harder to clean than elegoo’s standard or water washable resins. Maybe could be used as an additive to add some flex without compromising integrity.
-
A. Tanguay
> 24 hourUsing on a regular Photon after getting terrible results from the stock goo. What an upgrade. Better adhesion, great detail. The parts definitely have a nice ABS feel to them...tough, but a little flexible. Definitely do your calibration sheet to get your exposure time down. Good stuff...Ill be getting more.
-
Andrew
> 24 hourThis stuff prints really well but comes out so brittle that Ive had supports rip out chunks of my model (and I remove pre-cure). Ive also had models shatter if they fall to the floor (hard wood) as I scrape them off the build plate. But the biggest disappointment is the discoloration you get if you over cure your print. The black turns a dark grey, yellow turns orangish pink. Sure the models probably didnt need to sit in the box for an hour but this is the only resin Ive had this issue with.
-
D. Dimick
> 24 hourI really like this resin. It produces consistent results and I have had very few failures. The failures that I have are usually because of under-supported models. This resin is easy to clean and if your dial your settings in then very little clean up is required. Paints well. Sands welll.
-
seba
> 24 hourNo lo utilice aun
-
Jcake2
> 24 hourPrints flawless everytime
-
William Allen
> 24 hourPerfect for Anycubic Photon printer. I use white or grey (or mixed) for pre-primed color so I can paint the things I print.
-
David Russell
> 24 hourHad to add some time to each layer, but overall this stuff didnt give me any problems and looks awesome.
-
Natalie Nienow
> 24 hourPrint will like the dark gray color bring out the detail
ELEGOO ABS-like photopolymer resin is a type of polymer that changes its physical properties when introduced to light, and it"s VOC free. In the case of 3D printing, this is a typical liquid plastic resin that hardens when exposed to a light source, such as a laser, a lamp, a projector or light-emitting diodes (LEDs) and most of these light sources irradiate ultraviolet (UV) light, which works perfectly with our photocuring resin. It"s a perfect companion for LCD 3D printers, and the print quality is excellent in terms of the details and performances.
Precautions:
- Shake well before use
- Recommended temperature 20°C - 25°C
- Always wear gloves and mask to avoid direct skin contact
- Keep away from children, dust and direct sunlight
- Wash with plenty of water immediately if you get direct skin contact with resin
ELEGOO Photopolymer Resin

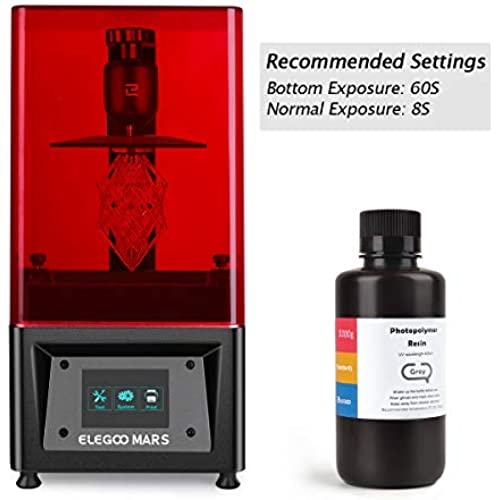

Printing Setting:
- Bottom Exposure:60s
- Normal Exposure:8s
Resin Parameters:
- Viscosity: 200-350MPa·s
- Absorption band: 355nm-410nm(wavelength)
- Density: 1.05-1.13g/cm3
- Flexural Modulus: 601.542±10% MPa
- Bending Strength: 30.405±10% MPa
- Thermal Deformation Temperature: 80℃
- Volume Shrinkage: 3.72-4.24%
- Linear Shrinkage: 1.05-1.35%
- Tensile Strength: 30.806±10%Mpa
- Tensile Modulus: 353.891±10% Mpa
- Shore Hardness: 85-88D
- Glass Transition Temperature: 100℃
- Notch Impact Strength: 41-48j/m
- Shelf Life: 2 year
Light Odor and Consistent Success
Photopolymer resin can be smelly in some cases. With the refined formula, ELEGOO resin has a very light odor and no pungent smell.Long-time printing can be demanding, but ELEGOO resin ensures consistent, high-quality prints.
Less Brittle and Higher Tenacity
When it comes to printing industrial parts where the toughness of the model is critical, you will need a high standard resin to enable the prototype works flawlessly without any issues. Say no to brittleness and use resin of higher tenacity.
High precision and Low Shrinkage
The fantastic detail performance of the models printed with resin is just like artwork. With low volume shrinkage and volume shrinkage, ELEGOO ABS-like resin ensures the print accuracy and make sure all the parts printed to fit in the right place.
Wide Applications
ELEGOO photopolymer resin is compatible with the LCD 3D printers using the UV light source to cure models.
It has a wide range of application from board game miniatures to industrial parts and components.
You can also use it to print your 3D CAD design works and make it from an idea into reality.
The only limitation is your imagination. Print now and go with ELEGOO.
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| ELEGOO 8K Standard Resin | ELEGOO 8K Water Washable Resin | ELEGOO Standard Resin | ELEGOO Water Washable Resin | ELEGOO ABS-Like Resin | ELEGOO Plant-Based Resin | |
| Max. force（KGF） | 165.7±10% | 103.5±10% | 137.6±10% | 105.10±10% | 167.1±10% | 116.5±10% |
| Tensile strength（MPA） | 39.06±10% | 24.39±10% | 32.437±10% | 22.89±10% | 39.39±10% | 27.463±10% |
| Deformation at the point of maximum force（mm） | 5.32±10% | 5.66±10% | 9.863±10% | 8.45±10% | 6.41±10% | 12.338±10% |
| Yield point elongation(%) | 5.71±10% | 5.37±10% | 5.545±10% | 6.92±10% | 6.49±10% | 5.574±10% |
| Elongation at break（%） | 9.4±10% | 10±10% | 17.484±10% | 14.91±10% | 14±10% | 21.811±10% |
| Flexural strength (MPa) | 48.93±10% | 28.08±10% | 29.826±10% | 15.05±10% | 40.54±10% | 20.27±10% |
| Flexural modulus (MPa) | 1412.8±10% | 760.53±10% | 768.676±10% | 327.96±10% | 1089.62±10% | 531.271±10% |
| Impact strength（j/m） | 80±10% | 68±10% | 40.03±10% | 86.90±10% | 205±10% | 58±10% |
| Tensile modulus(MPa) | 538.4±10% | 327.7±10% | 424.97±10% | 232.05±10% | 538.9±10% | 328.562±10% |
| Reason to buy | Non-Brittle and Less Odor | Non-Brittle and Less Odor | Low Shrinkage | Water Washable, Easy to clean | High Toughness | Safe and no irriation |
